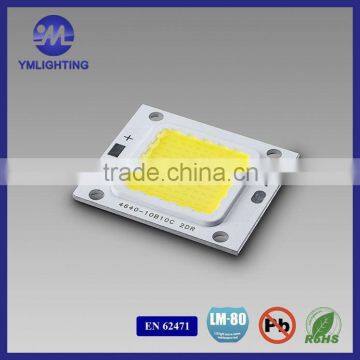

High Quality 70W Power 20W Cob Led Light For High Bay Source
- zhongshan shenzhen guangzhou
- T/T Credit Card PayPal
You May Like
Product Details
| Model Number | YM-3030 led module | Chip Material | InGaN | |
| Emitting Color | Cool White | Luminous Intensity | 22000~25000mcd | |
| Luminous Flux(lm) | 120-140lm | Optical Attenuation(%) | 7 | |
| Power | Other, 10W,20W,30W,50W,70W,100W | Power Dissipation | 0.2 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 2700-8500K | |
| Operating Temperature(℃) | -30, 60 | Storage Temperature(℃) | -40, 85 | |
| Place of Origin | Guangdong, China | Brand Name | YUMING | |
| Certification | CE |
Product Description
Product Description
| Product Type | Power(W) | Size | Emiting surface size | Light efficiency | CRI Ra> | VF | IF | |
| Min | Max | |||||||
| YM005-10C2B | 10W | 40*46*1.5mm | 25*25mm | 80-100lm/W 100-120lm/W | 70-95 | 31.0 | 33.0 | 300 |
| YM005-10C4B | 20W | 600 | ||||||
| YM005-10C6B | 30W | 900 | ||||||
| YM005-10C10B | 50W | 1500 | ||||||
| YM005-10C7B | 70W | 2100 | ||||||
| YM005-10C7B | 100W | 3000 | ||||||
product application
outdoot lighting:High bay light, flood light, street light
Precaution For Use
1 Storage
a) Do not open moisture proof bag before the products are ready to use.and kept at ≤30℃,≤90%RH
b) After opening the package, LEDs should be stored at ≤30℃,≤60%RH
and be soldered within 24 hours. It is recommended that the product be operated at the workshop condition of 30℃ or less and 60%RH or less.
c) If moisture absorbent material has fade away or LEDs expired storage time, baking treatment should be performed on the following condition: 80℃ for 24 hours.
2 Static Electricity
1) LEDs are ESD and surge high sensitive device. Damaged led will show abnormal electrical performance
2) All devices, equipment and machinery must be properly grounded. Wrist band or anti-electrostatic gloves, anti-electrostatic containers are recommended
Handling
1) Handle the component along the side surface by using forceps or appropriate tools.
2) Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.
3) Do not stack together assembled PCBs containing the internal circuitry.
Packaging & Shipping
5730: 4K in one reel, 2 reels in one bag , 22 bags in one carton
4014: 5K in one reel, 2 reels in one bag , 23 bags in one carton
3030: 3.5K in one reel, 3 reels in one bag , 22 bags in one carton
2835: 3.5K in one reel, 3 reels in one bag , 22 bags in one carton
FAQ
Q: Are you manufacturer or dealer?
A:We are manufacturer of LED located in Zhongshan , welcome to visit our factory.
Q:Do you have LM-80 report
A:Yes,please contact our sales representative to get soft copy
Q:Can you offer free sample for testing?
A:Yes,free sample is available upon request, but customer will need to pay express charge or provide consignee account
Q:How long is your lead time
A: Normal parts including SMD and COB are 5working days upon payment, for customize parts, will discuss with customer
Q:What’s your MOQ requirement
A: SMD : 100k COB: 10K
