19MM Waterproof Metal Push Button Industrial Switch,Waterproof and emergency stop switch
- Ningbo/Shanghai/HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
LED Metal 12v 19mm push button switch
-
New Design 19mm LED Push Button Switch Made In China
-
19MM High flat Waterproof Metal Push Button Industrial Switch
-
19MM Stainless steel push button switch LED power switch
-
19mm Ring illuminated LED metal push button switch with wire
-
Export very high quality 19MM Domed momentary metal push button switch with CE ROHS
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SINCO | |
| Model Number | 19mm, 19mm metal push button switch | Protection Level | IP65/IP67/IP68 | |
| Max. Current | 5A | Max. Voltage | 250VAC |
Product Description
19MM Waterproof Metal Push Button Industrial Switch,Waterproof and emergency stop switch
Quick metal button parameters
Type | S19-F | S19-F-R | S19-F-D | ||||
Illuminated Options | Non-Illuminated | Ring | Dot | ||||
Max. Panel Thickness: | 0.394" (10.0mm) | ||||||
Terminal | Pin(2.8x0.5) | ||||||
Max. Switch Rating | 5A/ 250VAC | ||||||
Contact Resistance | ≤50mΩ | ||||||
Insulation Resistance | ≥1000mΩ | ||||||
Dielectric Strengh | 2000VAC | ||||||
Operation Temp. | -20°C ~ +55°C | ||||||
Mechanical Life | 1,000,000cycles | ||||||
Electrical Life | >50,000cycles | ||||||
Contact Material | Silver Alloy | ||||||
Torque | 5 ~ 14Nm | ||||||
Operation Pressure | 3 ~ 8N | ||||||
Protection | IP65 | ||||||
Material | Actuator | Stainless Steel/ Anodized Aluminum | |||||
Body | Stainless Steel/ Anodized Aluminum | ||||||
Base | PA | ||||||
Color | Type | LED (ratings @ 20mA) | |||||
Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White | |
Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 | |
Forward Volatge | 1.8~2.6 | 2.8~3.6 | |||||
Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. | ||||||
6V/ 12V/ 24V/ 36V/ 110V/ 230V | |||||||
Life | Approx. 40, 000hours | ||||||
Mechanical Dimensions

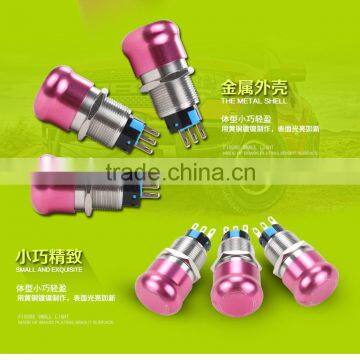

Detailed Images
Install the display
Application
