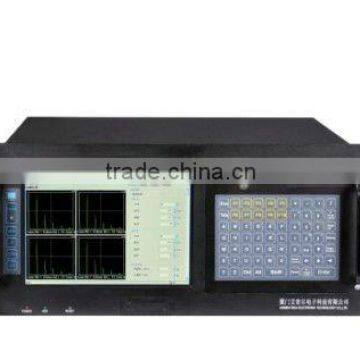

Boiler Tube Welds Inspection Machine by Ultrasonic Testing

FOB Price

US$ 1,000 - 200,000 / Set

1 Set(Min. Order)

Port Xiamen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	IDEA
Model Number	IDEA-UT	Power	Electronic
Usage	Other, Auto Testing Machine, to detect the various pipes and parts

Product Description

Specifications

1.ultrasonic testing
2.Welds Inspection
3.ultrasonic system
4.128 channels testing is available
5.Boiler Tube

Applications

The instruments can be widely used for titanium tubes, zirconium tubes, seamless steel tubes, welded gas and oil pipelines, nonferrous metals, ferrous metals and some other non-metallic pipes, bars, plates ,and the rail automatic (or semi-automatic) non-destructive ultrasonic testing.

Technical Parameter

Gain	0-100dB,step 0.1dB
Detection channels	1,2,4,8,16, 32
Operation mode	Single probe transmitter and receiver, dual probe transmitter and receiver
Scan mode	A,B,C type scan
Surplus Sensitivity	≥65dB
Resolution	≥36dB
Dynamic range	≥42dB
Scan range(steel longitudinal wave)	0~6000mm
Frequency range	0.5~20MHz
Repetition frequency	100Hz~10KHz adjustable
Vertical linearity	≤3%
Horizontal linearity	≤1%
Gate setting	Each channel has three gates, alarm gate, tracking gate, self locking gate
Delayed (marking) alarm	split in two,delayed time :0.5~10S,step: 0.1S
Testing conditions and flaw wave form	Quantity unrestricted,invocation,wave replay,wave communicate,wave print
Test report	Automatic generate(WORD ,EXECL)
Parameter storage	Detection state parameters,echo pattern,DAC curve and remark information etc.
Clock Type	Inner, outer CLOCK
Encoder	50-1024 (Optional)
Detector mode	positive, negative, bi-directional, radio frequency (RF)
Peak memory	Can choose echo peak memory display,background peak wave can be in a different color represents.
SA,PA,RA,%	Real-time display
