ET and UT detection and testing equipments

ET and UT detection and testing equipments

1.ET and UT detection system and testing equipments for pipe hydraulic pressure vessel
2.test: NDT Ultrasonic & eddy current

1.ET and UT detection system and testing equipments for pipe hydraulic pressure vessel
2.test: NDT Ultrasonic & eddy current

3.Scan mode: A,B,C type scan
4.Brand: IDEA

IDEA-UTXX Intelligent Digital Multi-channel Ultrasonic detector uses the most advanced digital electronic technology and ultrasonic technology.With utilitarian function,steady performance, easy operation and favorable price, which is the full-digital intelligent ultrasonic detector that has the excellent price versus performance ratio.

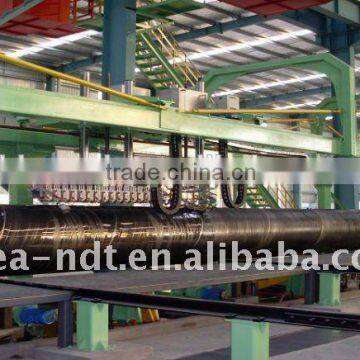

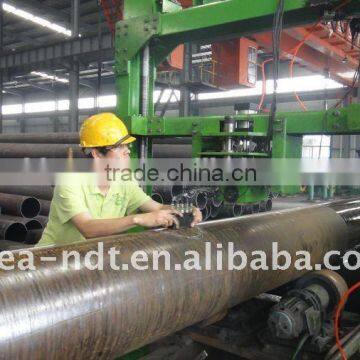

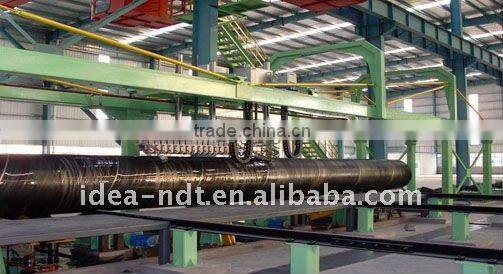

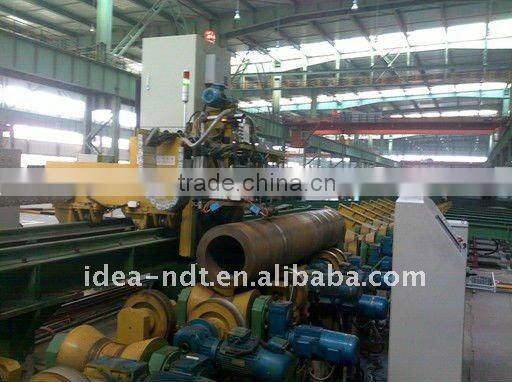

The instruments can be widely used for titanium tube, zirconium tubes, book-walled pipe, seamless steel tubes, welded gas and oil pipelines, nonferrous metals, ferrous metals and some non-metallic pipes, rods, plates and other profiles, and the rail automatic (or semi-automatic) non-destructive ultrasonic testing.

IDEA-UTXX Intelligent Digital Multi-channel Uultrasonic detector uses the most advanced digital ultrasonic technology, photovoltaic technology and microprocessor technology. With beautiful design automatic transmission, complete electromechanical integration system, which is the only company that have a complete system of automatic machine.

Applications

Metal tube , metal bar , sheet material and linear materials

Standard

GB   ASTM    API   EN   JISG   JB  ISO  MH  JG  YB

Technique Data

Detection channels : 1,2,4,8,16,32, Independence of the channel type, switching to receive, can work in free circulation and combination.

Scan mode: A,B,C type scan

Simple system configuration , flexible hardware frame, through the various communications link, can reach the demands of 128 or more channels .

Meet the needs of the project, can allow for motor control and I/O interface.

Each channel has three strobes, alarm strobe, tracking strobe, self locking strobe;

Complete alarm function, can meet different kinds of needs of the automatic detection system

Use of advanced alarm circuit technology which is effective to inhibit the outside interference, strong capacity of resisting disturbance, can improve the reliability of the alarm.

Software is modularized ,and can according to your need to be configured.

Advanced instrument circuit design and process design , reliable performance, steady operation.

File editing function: can storage, invocation, play back and print the testing conditions and flaw wave form, then form the test report .

Communication function :  Adopt TCP/IP protocol and upper monitor to communicate, and through the upper monitor to control this instrument, not only can use this instrument to directly ultrasonic test, also can use the upper monitor to control it by cable and wireless network .

The updating of various softeware, can be specially designed the software to meet the special demands for users.
