Home > Products > slitting machine line > HR Coil Edge Trimming Machine
HR Coil Edge Trimming Machine
- Shenzhen Guangzhou
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HJ | |
| Model Number | JB 1350-05 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HR coil edge trimming machine
---introduction of HR coil edge trimming machine
HR coil edge trimming machine is widely used for Pickling, annealing, pipe making, automobile parts, metal case, metal punching, package steel strips industries, Etc. Our HR coil edge trimming machine has been exported more than 15 countries, also win good reputation from our customers, and we will be stronger and have a good team for design and development, we do not speak a lot, we just win with our qualified quality. To cooperate with you is our biggest honor.
HR coil edge trimming machine | |
Inquiry details | |
Material: GI, HR, SS, CR, HRC etc. | Thickness:0.2-2.0mm (max could be 12mm) |
Coil ID: 508 or 610 or 760 mm | Coil max width: 300~~1300MM |
Coil max weight: 5T~~20 T | Application after slit: for pipe or just processing |
Monthly production: 1000T~~2500T | Max Strips you want to slit: 2~~30 PCS |
Speed: 15~~150m/min | Slitting Tolerance:±0.5mm |
Machine composition | |
1, coil car | 2, decoiler |
3, two pinch, shear | 4, loop pit |
5, manual/electric side guider | 6, slitter |
7, edge coil rewinder 9, tension station 11, push device 13, hydraulic system | 8, loop pit 10, recoiler 12, coil car 14, electric system |
Parameters of HR coil edge trimming machine | ||||
Model type | Thickness(mm) | Max width (mm) | Speed (m/min) | Power (KW) |
650 | 0.2-1.5 | 200-600 | 180 | 70 |
1.0-4.0 | 200-600 | 150 | 85 | |
≥4.0 | 200-600 | 120 | 100 | |
850 | 0.2-1.5 | 300-800 | 160 | 85 |
1.0-4.0 | 300-800 | 150 | 100 | |
≥4.0 | 300-800 | 120 | 120 | |
1350 | 0.2-1.5 | 300-1300 | 150 | 120 |
1.0-4.0 | 300-1300 | 130 | 150 | |
≥4.0 | 300-1300 | 120 | 180 | |
1650 | 0.2-1.5 | 300-1600 | 150 | 170 |
1.0-4.0 | 300-1600 | 120 | 240 | |
≥4.0 | 300-1600 | 100 | 280 | |
2200 | 0.2-1.5 | 500-2000 | 100 | 280 |
1.0-4.0 | 500-2000 | 80 | 340 | |
≥4.0 | 500-2000 | 60 | 380 | |

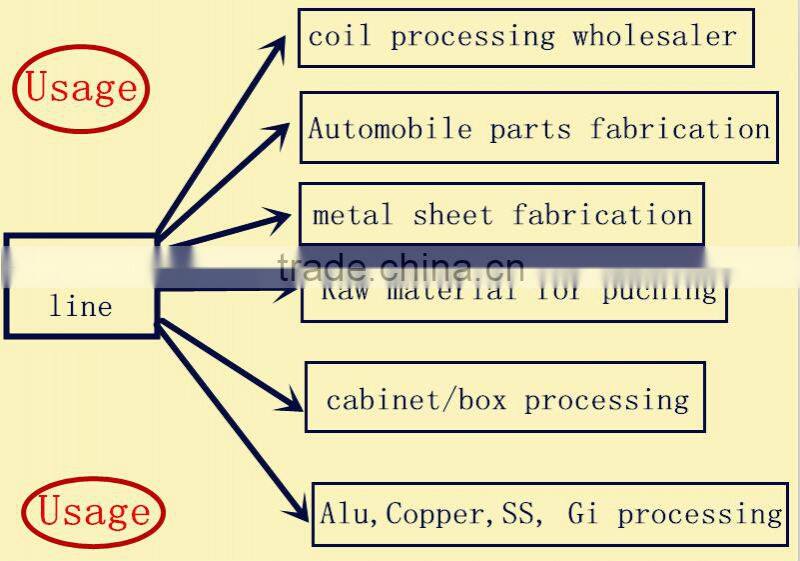

---Daily application for this machine line

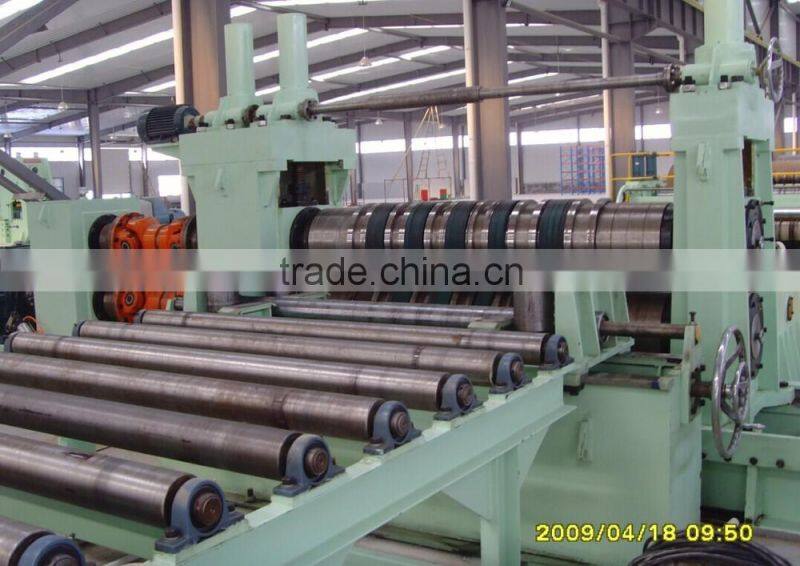

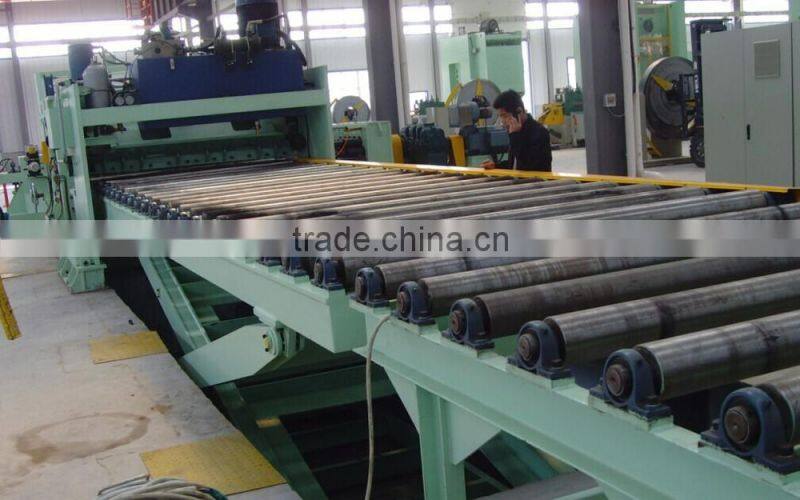

---Workshop view
Why choose us
1, Our three companies just manufacturing for cut to length machine and edge slitting line.
2, Top 1 welding skills in gear box and body welding.
3, We have kinds of design choice, will match the suitable machine as per your real needs
4, On time delivery and strong teamwork
Do you have any big customer?
| 1, Jindal stainless steel | 5, GMT Industries ltd |
| 2, Appllo tubes | 6, D G industries limited |
| 3, Tata group | 7, Baosteel group |
| 4, Saudi peak group | 8, Sobia steel |
Any commission we can get?
1, You can get 5% commission if you are the first customer in ur city(state)
2, Our operator will teach your person how to operate and how to deal with possible failure
3,1 Year free quality guarantee and whole life service
---Certificates for our quality and reputation
Welcome to visit us!
