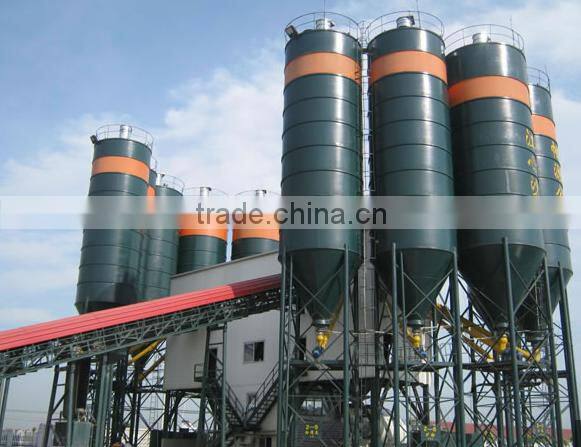

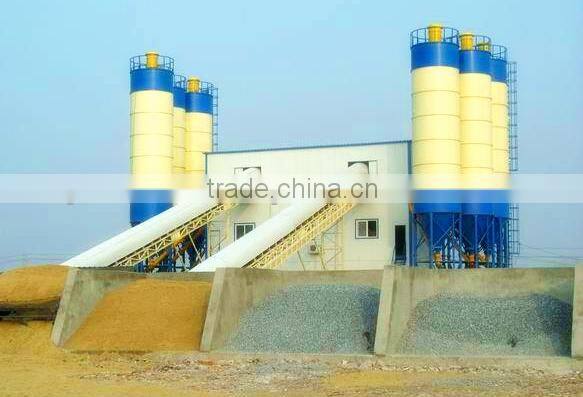

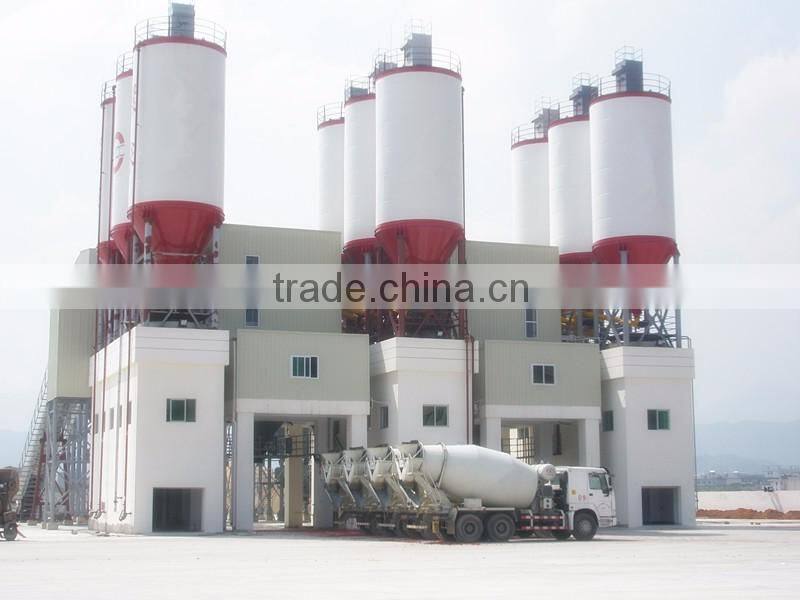

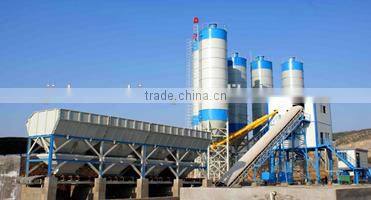

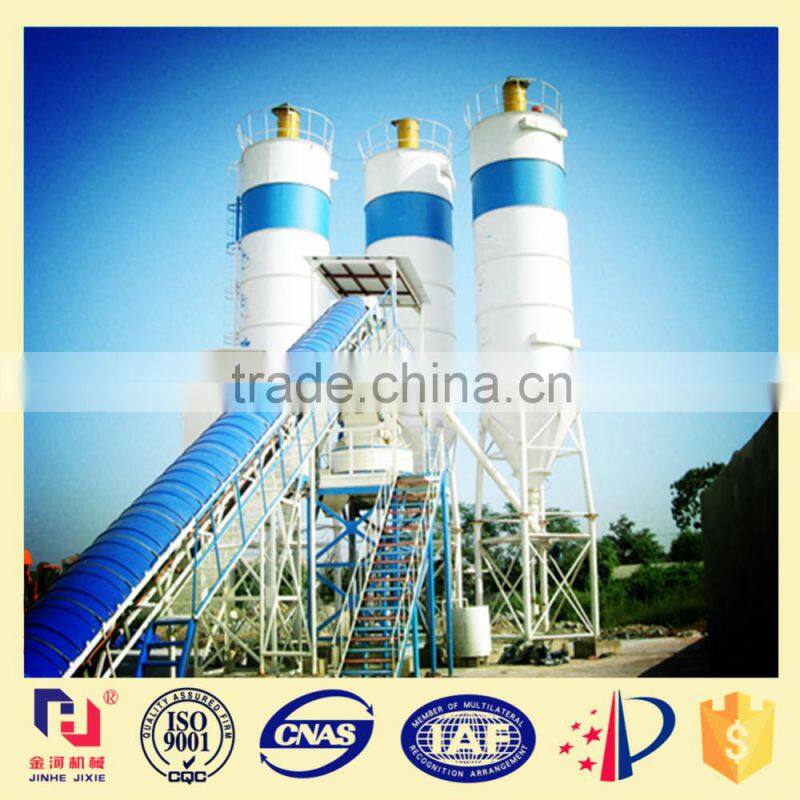

Elba Concrete Batching Plant

elba concrete batching plant

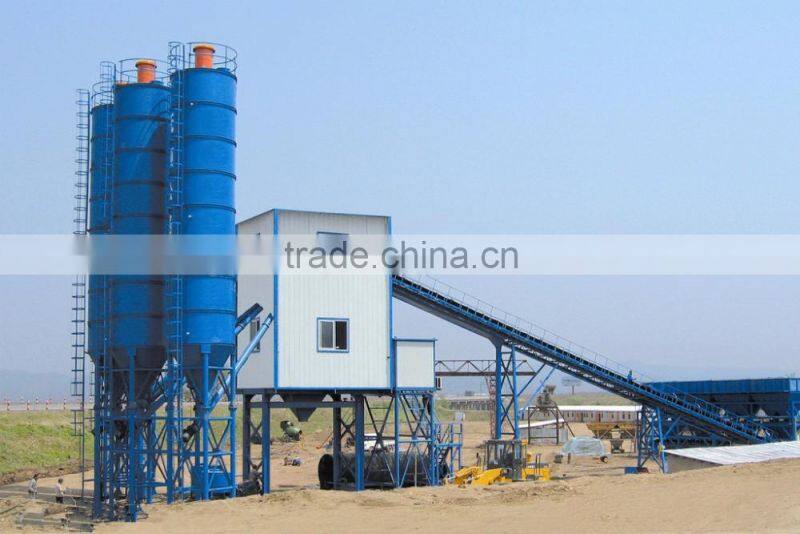

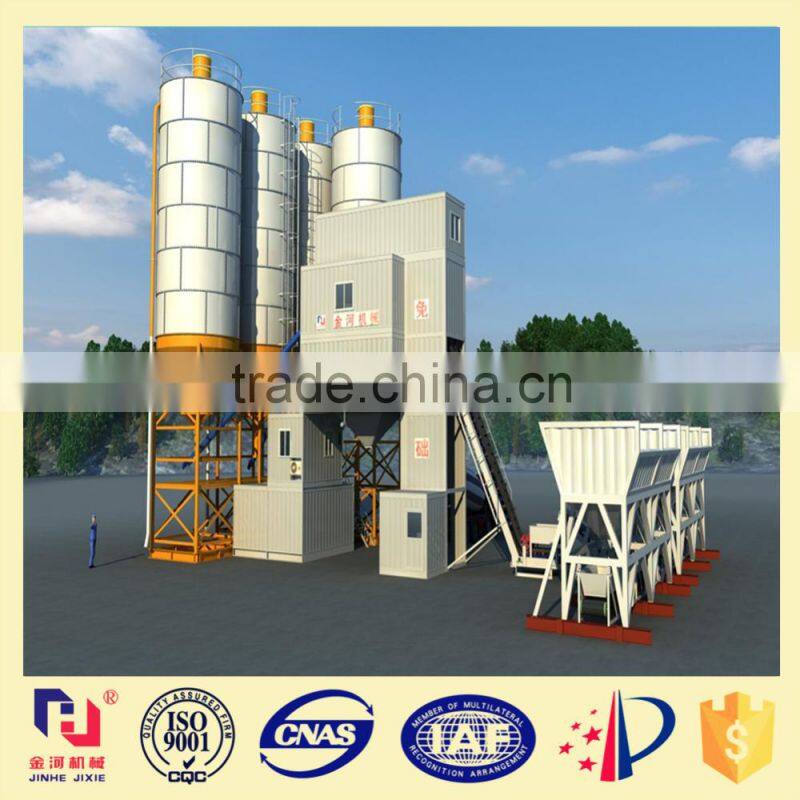

 Concrete mixing plant is used for contruction project, widely used to produce plastic concrete and dry concrete for large and medium road & bridge construction projects. The whole plant is consist of mixer machine, batch machine, separate metering, screw conveyer, electric system, control system, computer control room, etc.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Machine Parts

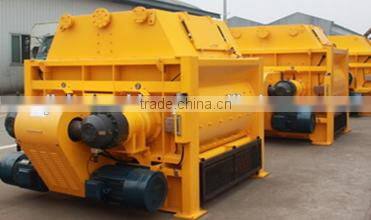

Name: Mixer

Brand: Mixplant/SICOMA/BHS

Original: China

Domestic famous engines, strong driving force, low fuel consumption, high economic.

Machine Parts

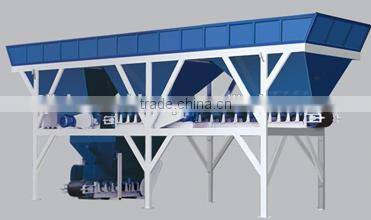

Name: Dosing Machine
Brand: PL1600
Original: China
Discharge outlet with variable size

Belt conveyor driving system

Five-layer conveying belt

Machine Parts

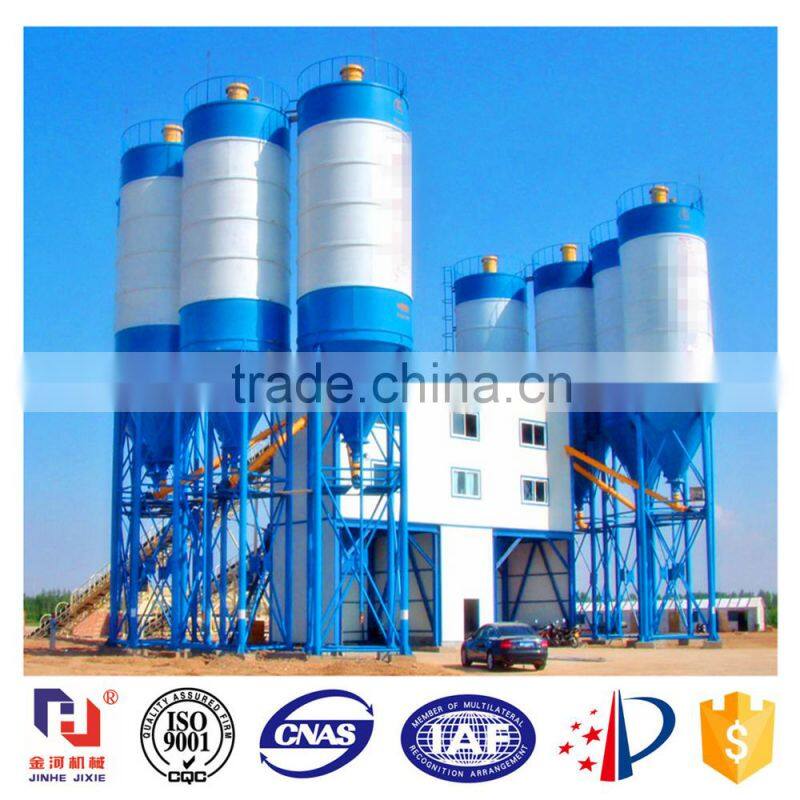

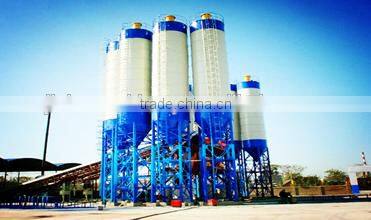

Name: Cement Silo
Brand: JINHE
Original: China
Divided into three parts,namely top cap of silo,middle nodule and lower cone.Each part is of piece silo.Easy to assemble and transport.

Machine Parts

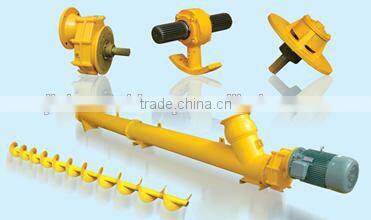

Name: Screw Conveyors
Brand: JINHE
Original: China
Spline shaft design (pendent axis)stationary rings

Standard inspection window

Ensure minimum blocking of material

Low-maintenance

Good alignment
