Junction Box,IP66,Explosion-Proof,Anti-Corrosive

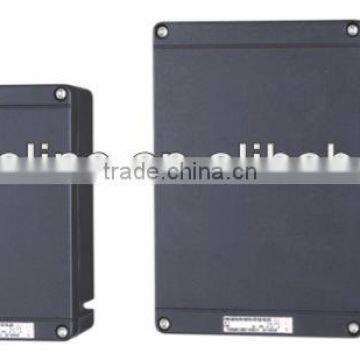

BXJ8050  Explosion-Proof Junction Box

Suitable Work Enviorment/Application:

1,Can be used in Zone 1 and Zone 2 dangerous places.
2,Can be used in ⅡA,ⅡB,ⅡC group explosive atmosphere.
 Can be made dust explosion-proof according to users requiment.

Features:

1,It is used to sub-connect or connect 380/220V and below electrical circuits,and also applicable to connect supply wire of self-control engineering or communication’s signals.
2,The shell is made of high rigid,flame-proof engineering plastic with beautiful appearance,functions of electrostatic-resistant, impulsion-withstanding,thermal stability and corrosion-proofing.
3,Between cover and shell body is arranged sel washer fastened by stainless screw.
4,Terminal can be selected for line pressed type or pheonix’s special terminal of safety-increased type.
5,Terminal number,direction,nominal diameter may be changable.
6,suitable for cable wiring.

Main Technical Parameters:

720*360*240mm

430*300*190mm

420*130*160mm

360*360*160mm

330*225*150mm

330*225*110mm

225*150*150mm

225*150*110mm

300*210*110mm

260*180*120mm

310*130*110mm

150*150*110mm

130*130*80mm

Outline Drawing:

Notice:The detailed outline dimension is made according to inner-terminal’s number,current and specification,
dircetion of inlet and outlet.
