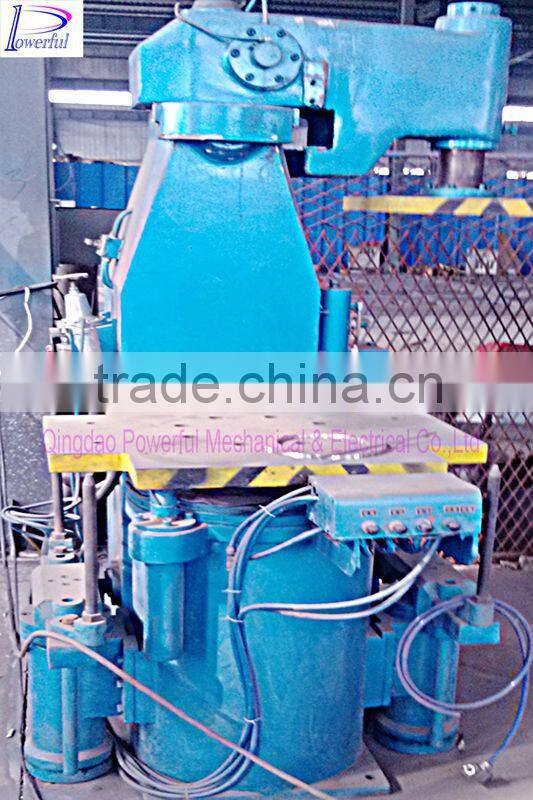

Z148W Jolt Squeeze Molding Machine for Foundry
- Qingdao
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Powerful | Model Number | Z148W | |
| Voltage | 380v | Power(W) | 1.3w | |
| Dimension(L*W*H) | 1760*1180*2280 | Weight | 2.7 | |
| Certification | ISO9001 | Warranty | 12month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
jolt squeeze molding machine1.Good Quality
2.OEM Service
3.High Efficiency
4:Easy operate
Jolt squeeze molding machine
Mold:High quality Z148w microseism squeeze molding machine
1:jolt squeeze molding machine is fully buffered,high-frequency, low amplitude, pneumatic microseism squeeze compaction-type molding machine.
2:jolt squezze molding machine is used a butter spring , pneumatic microseism institution can reduce the shock impact of foundation.
3:All parts of aircraft fuselage is steel, to made a substantial increase of steel
4.jolt squeeze molding machine adopt cylinder, crank, connecting rod, synchronizing shaft achieve molding synchronously
5.It is easy to operate, visual sand, the operational procedures can be humane and effective to increase productivity.
Our company main products are: the production line of clay sand casting equipment ,V,EPC equipment, sand reclamation
equipment ,resin sand molding production line of glass sand reclamation equipment of mechanized moulding lines; series mixer; bucket elevator and climbing charge; series of environmental protection dust remover and so on..
as follows:
shot blasting machine/sand preparing equipment/sand mixer/v method/production line/molding machine/spare parts off shot blasting machine/blast wheel…
Z148w jolt squeeze molding machine Technical parameter:
Item | Z148W |
Foundry flask maximum dimension(mm) | 800*700*400 |
Worktable dimension(mm) | 900*700 |
Jolting load(kgf) | 700 |
Compressive stress(kgf) | 17000 |
Compress process(mm) | 200 |
Moulding process(mm) | 250 |
Productivity(case/h) | 40-60 |
Jolting cylinder diameter(Φmm,) | 620 |
Outline dimention L*W*H(mm) | 1760*1180*2280 |
Weight(t) | 2.7 |
Power(kw) | 1.3 |
Voltage(v) | 380 |
