30mm 8ohm Plastic Cone Micro Dynamic Speaker
US$ 0.1 - 0.5
/ Piece
500 Pieces(Min. Order)
- Xiamen Port for micro dynamic speaker
You May Like
Product Details
| Brand Name | HSY | Model Number | H30M08-06 | |
| Type | Passive | Use | Computer, Home Theatre, Karaoke Player, Mobile Phone, Portable Audio Player, Stage | |
| Channels | 2 (2.0) | Special Feature | Mini, Portable, Wireless | |
| Place of Origin | Fujian, China |
Product Description
30mm 8ohm plastic cone micro dynamic speaker ( H30M08-06 )

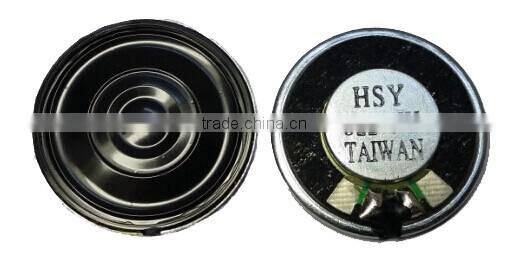

Product Image
Product Description
Support design and produce speakers according to customer's demand . Welcome inquiry .
| Speaker | micro dynamic speaker |
| Diameter | 30 x 5.3 (H)mm |
| Rated Power | 1.0 watt Max 2.0 watt |
| Nominal Impedance | 8 Ω±15% At 1000 Hz test |
| Lowest Resonance Frequency | 550Hz ± 20% |
| Output Sound Pressure Level | 83± 3db / 0.1 W/894 mv 10 cm |
| Average at 800.1000.1200.1500 HZ | |
| Effective Frequency Band | fo -5k Hz Average SPL ±10 dB |
| Distortion | 5% Maxium at 1000 HZ 0.1W/0.1M |
| Pure tone Test | Must be normal at sine wave 4 V at 300HZ ~ 3KHz |

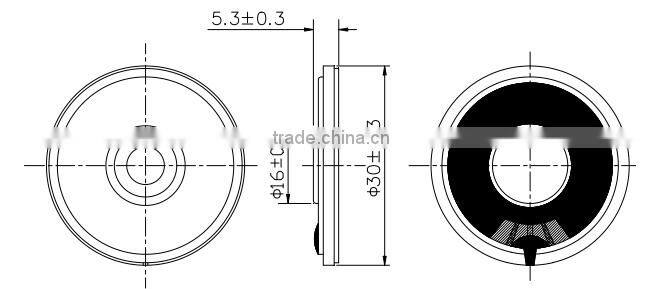

Product Drawing
