Home > Products > Mylar Speaker > Mylar Cone Small 36MM 4ohm Speaker Unit
Mylar Cone Small 36MM 4ohm Speaker Unit
US$ 0.1 - 0.5
/ Piece
100 Pieces(Min. Order)
- Xiamen Port for speaker unit
You May Like
Product Details
| Brand Name | HSY-Speaker Unit | Model Number | H36M04-11 | |
| Type | Passive | Use | Computer, Home Theatre, Karaoke Player, Mobile Phone, Portable Audio Player, Stage | |
| Channels | 2 (2.0) | Special Feature | Mini, Portable, Wireless | |
| Place of Origin | Fujian, China |
Product Description

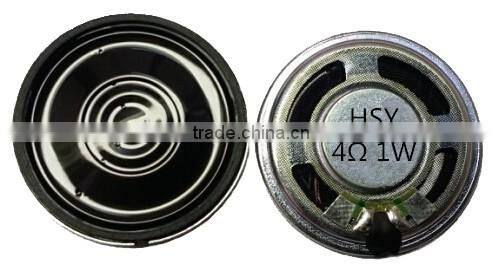

Mylar Cone Small 36MM 4ohm Speaker Unit ( H36M04-11)
product image
Product Description
Support design and produce speakers according to customer's demand . Welcome inquiry .
| Speaker | speaker unit |
| Diameter | 36 x 4.9(H)mm |
| Rated Power | 1.0 watt Max 2.0 watt |
| Nominal Impedance | 4 Ω±15% At 1000 Hz test |
| Lowest Resonance Frequency | 500Hz ± 20% |
| Output Sound Pressure Level | 85± 3db / 0.1 W/890 mv 10 cm Average at 600.800.1000.1200 HZ |
| Effective Frequency Band | fo -13k Hz Average SPL ±10 dB |
| Distortion | 5% Maxium at 1000 HZ 0.1W/0.1M |
| Pure tone Test | Must be normal at sine wave 2.83 V at 300HZ ~ 3KHz |
| Certificate | ROHS , CE, REACH, ISO9001 |

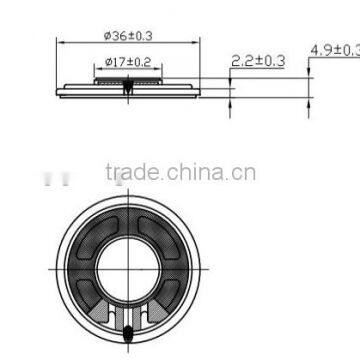

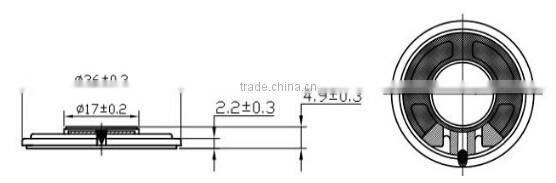

Product Drawings
