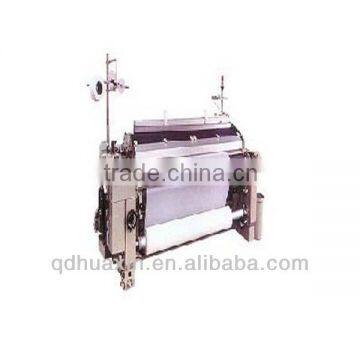

Water Jet Textile Machinery with ISO CE,CAM.150-360cm

Working range

Polyster yarn

Reed width (cm)

Nominal:150,170,190 ,210,230 260,280 330 360

Useful reeding width:reduct 0-60cm

Filling selection

1 color 2 color at will

Weft density range

6-60pick/cm

Motor

3.5kw,4.6kw selected according to the certain model

Shedding

Plain type 2-8pcs heald frame

Positive cam machine,4-10pcs heald frame

Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer’s demands)

Let-off

Electronic let off-ELO

Mechanical let-off

Flange diameter:800mm

Take-up

Mechanical take-up

Electronic take-up

Upper and down temple(according to the varity of fabric)

Waste filling removel

Mechanical take-up 3 roller

Cutter

Mechanical cutter

OPERATION

 – DRIVEN BY RUSH START MOTOR.STOP BY ELECTROMAGNETIC BRAKE AT PRGRAMMED POSITION

ARRANGE,RUN,FORWARD INCHING,REVERSE INCHING,PROGRAMMED POSITION STOP AFTER

ONE CYCLE REVERSE ROTATION.

BEATING

CRANK BEATING,SWORD BEATING SYSTEM OIL BATH LUBRICATION SYSTEM.

FILLING INSERTION :

SINGLE PUMP  (PLUNGER TYPE SPRING PRESSURE SYSTEM)

DOUBLE NOZZLE (NEEDLE TYPE CERAMIC ) STBILIZER SYSTEM

FEELER – IR FEELER OR OPF FEELER,USING OPTICAL CABLE.

YARN PACKAGE STAND

FLOOR MOUNTED HORIZONTAL STAND FOR – 4 PACKAGE.(2 COLOUR )

CATCH CORD

SPINDLE TWISTING SYSTEM.

TEMPLE

TOP MOUNTED,2 BARREL TYPE WITH 2 RING

WATER SUCTION

SLIT TUBE SUCTION (BLOWER TYPE )
