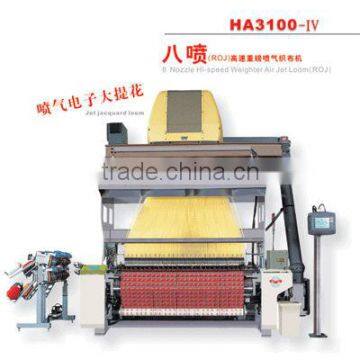

Jacquard air jet loom price

FOB Price

US$ 6,000 - 25,000 / Set

4 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Air Jet Loom
Application	cotton, polystor and other yarn weave	Production Capacity	99%
Place of Origin	Shandong, China	Brand Name	HUAXIN
Model Number	Ha3100	Dimension(LWH)	25001200900
Weight	2.5ton	Power(W)	1.5-4.5kw
Certification	CE	Warranty	1year
After-sales Service Provided	Engineers available to service machinery overseas

1 Electronic let off,tale up
2 ROJ feeder
3 2-8color
4 Centralized lubrication system

HUAXIN AIR JET LOOM WITH CE CERTIFICATE

Working range	Cotton and non-cotton yarn
Reed width (cm)	Nominal:150,170,190 ,210,230 260,280 330 360 Useful reeding width:reduct 0-60cm
Filling selection	1 color 2 color at will
Weft density range	6-300pick/cm
Motor	3.5kw,4.6kw selected according to the certain model
Shedding	Plain type 2-8pcs heald frame
	Positive cam machine,4-10pcs heald frame
	Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer’s demands)
Let-off	Electronic let off-ELO
	Mechanical let-off
	Flange diameter:800mm
Take-up	Mechanical take-up
	Electronic take-up
	Upper and down temple(according to the varity of fabric)
Waste filling removel	Mechanical take-up 3 roller
Cutter	Mechanical cutter
OPERATION	– DRIVEN BY RUSH START MOTOR.STOP BY ELECTROMAGNETIC BRAKE AT PRGRAMMED POSITION
	ARRANGE,RUN,FORWARD INCHING,REVERSE INCHING,PROGRAMMED POSITION STOP AFTER
	ONE CYCLE REVERSE ROTATION.
BEATING	CRANK BEATING,SWORD BEATING SYSTEM OIL BATH LUBRICATION SYSTEM.
FILLING INSERTION :	SINGLE PUMP (PLUNGER TYPE SPRING PRESSURE SYSTEM) DOUBLE NOZZLE (NEEDLE TYPE CERAMIC ) STBILIZER SYSTEM FEELER – IR FEELER OR OPF FEELER,USING OPTICAL CABLE.
YARN PACKAGE STAND	FLOOR MOUNTED HORIZONTAL STAND FOR – 4 PACKAGE.(2 COLOUR )
CATCH CORD	SPINDLE TWISTING SYSTEM.
TEMPLE	TOP MOUNTED,2 BARREL TYPE WITH 2 RING
WATER SUCTION	SLIT TUBE SUCTION (BLOWER TYPE )

Working range	Polyster yarn
Reed width (cm)	Nominal:150,170,190 ,210,230 260,280 330 360 Useful reeding width:reduct 0-60cm
Filling selection	1 color 2 color at will
Weft density range	6-60pick/cm
Motor	3.5kw,4.6kw selected according to the certain model
Shedding	Plain type 2-8pcs heald frame
	Positive cam machine,4-10pcs heald frame
	Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer’s demands)
Let-off	Electronic let off-ELO
	Mechanical let-off
	Flange diameter:800mm
Take-up	Mechanical take-up
	Electronic take-up
	Upper and down temple(according to the varity of fabric)
Waste filling removel	Mechanical take-up 3 roller
Cutter	Mechanical cutter
OPERATION	– DRIVEN BY RUSH START MOTOR.STOP BY ELECTROMAGNETIC BRAKE AT PRGRAMMED POSITION
	ARRANGE,RUN,FORWARD INCHING,REVERSE INCHING,PROGRAMMED POSITION STOP AFTER
	ONE CYCLE REVERSE ROTATION.
BEATING	CRANK BEATING,SWORD BEATING SYSTEM OIL BATH LUBRICATION SYSTEM.
FILLING INSERTION :	SINGLE PUMP (PLUNGER TYPE SPRING PRESSURE SYSTEM) DOUBLE NOZZLE (NEEDLE TYPE CERAMIC ) STBILIZER SYSTEM FEELER – IR FEELER OR OPF FEELER,USING OPTICAL CABLE.
YARN PACKAGE STAND	FLOOR MOUNTED HORIZONTAL STAND FOR – 4 PACKAGE.(2 COLOUR )
CATCH CORD	SPINDLE TWISTING SYSTEM.
TEMPLE	TOP MOUNTED,2 BARREL TYPE WITH 2 RING
WATER SUCTION	SLIT TUBE SUCTION (BLOWER TYPE )
