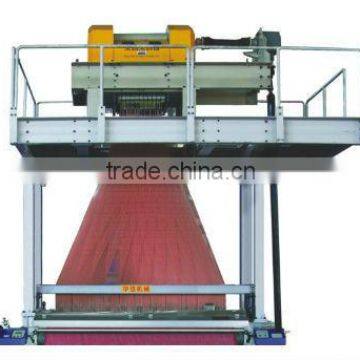

Electronic Jacquard Water Jet Loom For India market

Fabric yarn

· Chemical fiber  yarn T/C  40d-300d

working width (cm)

Nominal:150,170,190 ,210,230 260,280 330 360

Filling selection

1 color or 2 color ,3,4 ,6,8 colors

Weft density range

6-60pick/cm  80pick at most

Motor

3.5kw,4.6kw selected according to the certain model

Shedding

Let-off

Electronic let off-ELO

Mechanical let-off

Flange diameter:800mm-1000MM

Take-up

Mechanical take-up

Electronic take-up

Upper and down temple(according to the variety of fabric)

Waste filling removal

Mechanical take-up 3 roller

Cutter

Mechanical cutter

Operation

start –driven by rush start motor.stop by electromagnetic brake at programmed position

Arrange,run,forward inching,reverse inching,programmed position stop after

One cycle reverse rotation

beating

Crank beating,sword beating system oil bath lubrication system

Filling insertion

Single pump(plunger type spring pressure system)

Double nozzle(needle type ceramic) stabilizer system

Feeler-IR feeler or OPD feeler using optical cable

Yarn package standard

Floor mounted horizontal stand for – 4 package(2 color)

Catch cord

Spindle twisting system

Temple

Top mounted,2 barrel type with ring each.

Water suction

Slit tube suction (blower type)

Main spare parts

We can change any brand by customer’s requirement.

1.nozzle type:ROJ

2,plunger/cylinder:ceramic type

3 pump and spring: Awa, Japan

4.valve seat:NSK

5.Oil seal:NAK made in Taiwan

6.bearings:made in Japan
