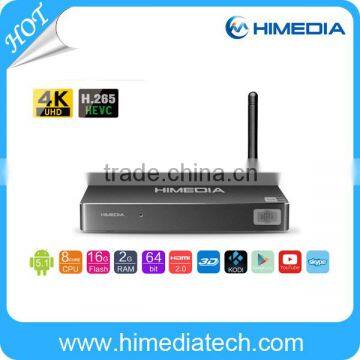

octa core RK3368 android 5.1 Google tv box H.265 TV Box 4K Kodi UHD smart tv box

Solution:

CPU: RK3368 Octa-core Cortex-A53, up to 1.5GHz

OS: Android 5.1

Memory: 2GB DDR3

Flash: 16GB

A/V Out:

HDMI2.0 interface

Composite Audio/Video

Other Ports:

USB2.0 Host×2

10/100M RJ45 port  (1000M Optional)

2.4GHz WiFi  (802.11ac Optional)

SD/MMC 2-in-1 card reader

DC 5V/2A power input.

Video Format:

ts,m2ts,tp,trp,mkv,mp4,avi,rm,rmvb,wmv,asf,flv,vob,dat,mpg,mpeg

3D Video:

Side-by-side, Up and down, Blu-ray 3D

Video Codec:

MPEG1/2/4,H.264/H.265/4K*2K/AVC,MVC,VC1,XVID,DiVX,Realvideo 8/9/10,VP6

Video System:

PAL/NTSC/720p/1080i 520Hz/1080i 60Hz/1080p 520Hz/1080p 60Hz

Audio Format:

mp3,wma,aac,ape,flac,mka

Picture Format:

JPEG,GIF,BMP,PNG

Subtitle Format:

SRT,SMI,SUB,SSA,IDX+SUB,PGS

File System:

NTFS,FAT32,EXT3,EXT2

Text Subtitle Option:

Font Color,outline color,Position,Size,Timeline,Encoding

Features:

²RK3368 Octa-core Cortex-A53, up to 1.5GHz.

²64-Bit.

²Android 5.1.

²HDMI2.0.

²RAM 2GB DDR3+16GB Flash.

²Support 4K@60pbs and H.265.

²Support XBMC/KODI, Youtube and Netflix.

²Support Google Play and Skype.

²Support Google browser, Flash11 and HTML5.

²Support AirPlay.

²Support Internet TV, IPTV and Internet Radio.

²Support BD-ISO and 3D BD-ISO.

BD rips in BDMV format and ISO are supported for playback. 3D BD-ISO rips are supported. Subtitles in BD rips are supported. All BD support is via custom BD-Lite menus.

²Support 2D/3D Games.

²Support USB Web Cam.

²Support USB mouse and keyboard operation and 2.4G QWERT Remote

²All popular audio and video files playback.

²Playback media files from NAS/PC via LAN or WiFi.

²Multilingual GUI Supported.

Default launcher and UI (Launcher and UI can be customized)

KODI Media Center

1.KODI is a free and open sourced software media center.

2.Via KODI,users can play and view movies,music,photos from local and internet.

3.Via KODI,users can watch anything they want for free without any subsciptions by just installing add-ons.

What we can do on KODI?

1.Customize KODI UI.

2.Add-ons pre-installed such as NAVIX,Genesis,SportsDevil,Phoenix TV,The Mutts Nutts etc.

3.OTA and Add-ons update online through our servers lacated in USA.

Established in 2005, HiMedia is a high-tech engineering company specialized in designing and manufacturing HD media players, Android TV boxes, smart TV boxes, Android-based set-top boxes, IPTV boxes, and OTT boxes. These products are compliant with CE, FCC and RoHS standards. And because of our hard work, we have got the Dolby, DTS and HDMI certificates.

Our company has a long history of successfully providing OEM and ODM services to many premium brand customers abroad. Our 50 English-speaking R&D engineers are ready to put their ten years of experience to use on your next OEM/ODM project. The primary functions of the R&D includes firmware design, hardware design, industrial design, structure design, user interface design, application developing and testing.

We are the strategic partner of Realtek, Huawei Hisilicon, and Allwinner. Accordingly, we always have a steady supply of reliable chipsets and unlimited technical support from these partners.
