BSG2613A Double Side Calibrating Sanding Machine
US$ 20,000 - 50,000
/ Set
1 Set(Min. Order)
- Qingdao
You May Like
-
MM5813 Double Side 4 Heads Heavy Duty Calibrating Sanding Machine
-
YP1300 Core Veneer 4Ft Spindless Veneer Peeler
-
4x8' Feet BY214/8-60 Plywood Production 600T Hydrauic Hot Press Machine
-
Veneer Splicer MH1130/ Veneer Composer Stitching Splicer
-
MM5213R-RP Double Heads Single Side Wide Belt Sander
-
MM5313R-R-RP 3 Heads Single Side Wide Belt Sanding Machine
Product Details
| Condition | New | Type | Sander | |
| Place of Origin | Shandong, China | Brand Name | YUANPING | |
| Model Number | BSG2613A | Voltage | 380v 50hz | |
| Power(W) | 162.49kw | Dimension(L*W*H) | 2100x3100x3050mm | |
| Weight | 10000kg | Certification | ISO CE | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Double side calibrating sanding2. working width 1300mm
ing thickness 2.5-150mm
4. ISO CE Certificate
5.R Structure

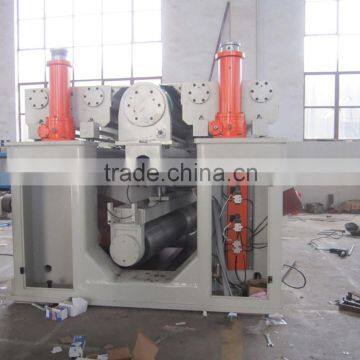

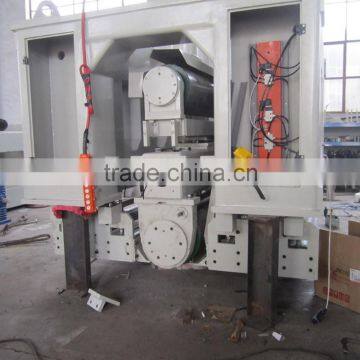

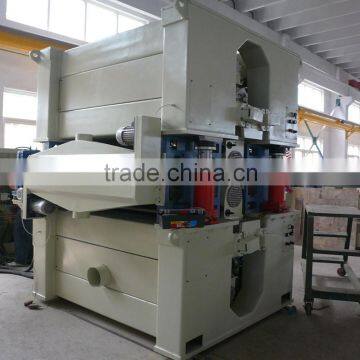

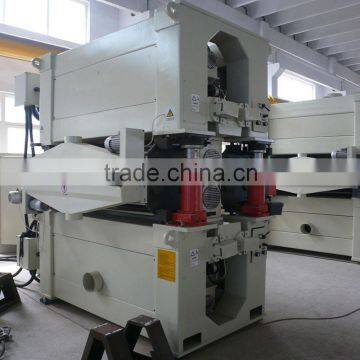

BSG2613A Double side Calibrating sanding machine
BSG2613A | Parameters |
Max. Sanding board width | 1300 mm |
Sanding Board thickness | ≤150 mm |
Sanding Board length | >500 mm |
Abrasive belt speed | 25m/s |
Abrasive belt size | 1350×2800 mm |
Total power | 162.49 kW |
Motor for sanding head | 75 kW×2 |
Motor for feeding | 11 kW |
Motor for lifting table | 0.75 kW |
Motor for brushing | 0.37 kw×2 |
Feeding speed | 10-30m/min |
Voltage | 380V 50Hz |
Operating pressure | 0.6-0.8Mpa |
Capacity of suction extraction | 24000m3/h |
Overall Dimensions[L×W×H] | 2100×3100×3050 mm |
Weight | 10000kg |
