Stainless Steel Pig Bone Grinder

Specifications

Stainless Steel Pig Bone Grinder

Brief introduction & Application

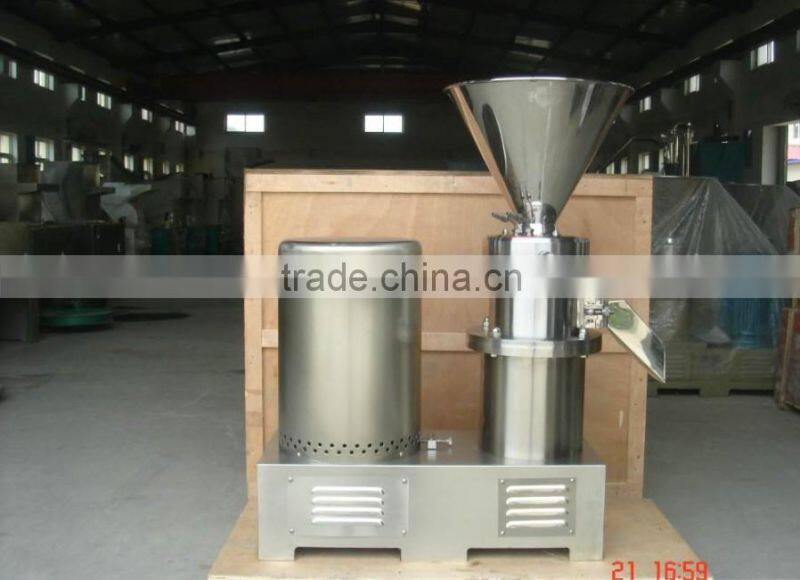

GN series Lida Machinery Bone Paste Grinder is fine process equipment for bone and meat. It is with multifunction as super pulverizing, shearing, mixing. Material can to grind into 100-200mesh, and with high production capacity. The material can keep fresh and good nutrition. It is ideal equipment for making Sausage, Ham, fish ball etc.

Working Principle

Through the stator and rotor of different geometries under high-speed rotation of the relative motion, the

Effect of processing materials in the weight, pressure and centrifugal force, by the shear stress, strong through the annular gap variable machine friction force, impact force, high frequency vibration force composite force, the material is effectively dispersed, crushing, mixing, to be the ideal product.

Features

This machine has the characteristics of reasonable structure, simple operation, convenient maintenance, small size, light weight etc. Also has the characteristics of wide adaptability, simple, and can change for different objects to replace the different types of motor etc.

The material of this machine main parts are made of stainless steel, corrosion resistance, and no pollution to the processing of material.

The main parts of machine are stator and rotor, which are well processed, and the gap between stator and rotor can be adjustable through handle.

The upper part of the machine is equipped with a dial, easy to control, ensure the quality of products.

According to different uses, can choose different tooth shape of stator and rotor, convenient assembly and disassembly

The machine speed can be adjusted, the user can select the right speed according to the material processing

Processing flow:

Coarse crushing-coarse grind-finish grind-fresh bone paste
