14 Inch rice mill rubber roller

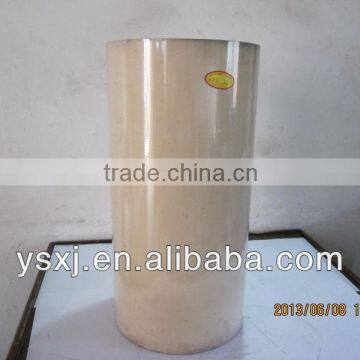

Rice Mill Rubber Roller

General Information

1. Name: Rubber Roller For Rice Huller

2. Material: SBR,NBR, POLY
3.Color: brown, white, amber, red
4.Size: 14 Inch
5.Minimum Order: 100pcs
6.Delivery Time:  Within 20 days after receiving the payment

7.Packing: shirnk film of each piece, carton box outside

8.Hulling capacity: 10" NBR  white 180mt  brown 150mt  SBR  white 150mt  brown  130mt  POLY 380mt

                                   14"NBR white 250mt  brown 230mt   SBR   white  230mt  brown 200mt  POLY 500mt

 Operating principle:

 Bedcause of speed difference of veer and reversion between rubber rollers

 paddy are torns up by two rubber rollers, in the end, rice grain comes out

Specifications:

1.Our company has over 10 years made of rice rubber roller experience

2.Our products exported over 10 countries of the world

3.The enterprise got ISO9001-2008 certification

Technical Specification

A. Color: Brown

a: Tensile Strength:Mpa 23-25
b: Elongation Rate: % 290-400
c: Wear Reduction: cm3/1.6km 0.19-1.05
d: Hardness (shore A): 95-96^oC

B. Color: White

a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-400
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 94-95^oC

C. Color: Amber
a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-350
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 92-96^oC

Size

Advantages

 1. High shelling efficiency, up to 95%

 2. Excellent chemical and phsical properties.

 3. Good in heat and abrasion resistance.

 4. Good in temperature and weather resistance .

 5. Strong bonding between rubber roll and drum

Usage and Attention

1. Optional of Rubber Roller:

   For the choice of  the black, brown and white rubber roller with  hardness shore A 90^oC and 95^oC,

   it should be according to the type of rices, climate conditions, and different seasons.

   Try to avoid to use the single roller,  the recommended way is higher hardness for fast roller,

   lower hardness for slow roller.

2.Temperature and Hardness Control:

   The proper hardness is shore A 82-86^oC, and the temperature is below 50^oC.

   When the temperature reaches above 60^oC,  the hardness of roller should be reduced 4-8^oC

3. Alternative use of rubber rollers is recommended:

A: It can increase the usage life of roller and quantity of dehusking rice.

B: Each roller has break time during the working,

    which is good for recoving the function of rubber, adjusting the speed difference

    upon on different diameters, and controlling the temperature effectively.

4. Two rollers should be at the same level to keep the space equal.

5. The paddy inputting should keep the balance.

6.  Keep the rate of the re-hulling under the limitation

7. Storage:

A: Avoid the direct sun shine and soaked in the rain and snow.

B: Away from the heating device about 1.5m.

C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.

D. Keep the room temperature 10-30^oC, comparative moisture 50-80^oC

E. Keep in vertical position,  horizontal is not allowed.

F. No other materials pressure on it, no hitting to avoid deformation and damage

G. Validity of storage life: one year
