WELCOME !

We have two adventages .

No.1   Materials produce by ourselves

- Our factory produce ACP material aluminum coil and polyester painting by ourself .

Which could reduce the material purchase coste , save transportation charge , cut down the cost ,also made us control well the quality in the processes of production.

 No.2   Bonded Zone avold the taxes,save the time

- Our new production center in Linyi Bonded Zone , get government big support.

Which could  avoid many types taxes,  promoting the import and export .

More details as below.

1.Specifications

2.Seaworthy packing

   1) 20 foot container: 2mm panel-6000M2, 3mm panel-5000M2, 4mm panel-4000M2, 5mm panel-3000M2.

   2) 40 foot container:2mm panel-8000M2,  3mm panel-7000M2,  4mm panel-6000M2, 5mm panel-5000M2.

3.Material

-  Top : aluminum alloy(1100,3003) coated with Fluorin carbon resin (PVDF) or Polyester resin  (PE) roasting painting.

 - Core :non-toxic polyethylene or  fireproof material(B1).

-  Back:aluminium alloy sheet coated with polyester resin painting.

-  Surface finish: PVDF / PET coated,brushed finish, mirror finish, wooden faced,marble faceed ,nano paintingect.

-  Surface coating thickness :25~30 μm  70% KYNAR 500 PVDF or PET.

4.Feature

  1)Super werther resistance

  2)Light weight easy to process

  3)Excellent fire resistance

  4)Excellent impact strength

  5)Uniform and colorful coating

  6)Easy maintenance...and so on

6.Certification

   According to GB/T17748-1999 standard and ISO9001,SGS,CE etc.

7.MOQ

    MOQ:1000 SQM , Stock size could be less .

8.Delivery time

    Within 15 work days after receiving the first deposite payment .

9. Payment

    T/T, L/C

10.Production capacity

Average 3500 SQM/Day

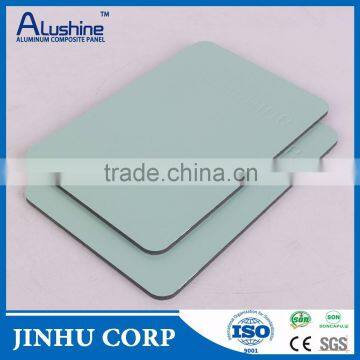

Latest design 4mm outdoor digital signage aluminum composite panels price for overseas market

Contacts :

Jessica

Phone & whatsupp :86-17862291968

Skype:Jessica Xie   QQ&Wechat : 1040179248

2mm-8mm exterior wood wall panels,aluminium composite material(acm), aluminium composite panel/acp sheet

PVDF Aluminum Composite Panel:

By adopting PVDF paints from the two toppest paint supplier: American PPG and Sweden Beckers, Megabond® PVDF Aluminum Composite Panel is the most ideal material for facade cladding, curtain wall cladding and other outdoor using purpose.

PVDF is short for Polyvinlylidene Fluoride, the color will have no obvious change within 15 to 20 years when it’s applied outdoor. PVDF paint should be 2-layer coating or 3-layer coating, and Painting Thickness ≥25um., Fluorocarbon Powder ≥70%.

Polyester(PE) Aluminum Composite Panel:

Due to Polyester paints’s great nature, it can achieve versatile vivid color and achive higher gloss rate than PVDF. Megabond® Polyester Aluminum Composite Panel is ideal for interior wall and shopfront decoration and signaboard materials.  And it can lower your budget the most.

With Polyester, the color has 5 to 10 years color warranty. Painting Thickness ≥18um, usually its a 1-layer coating or 2-layer coating.
