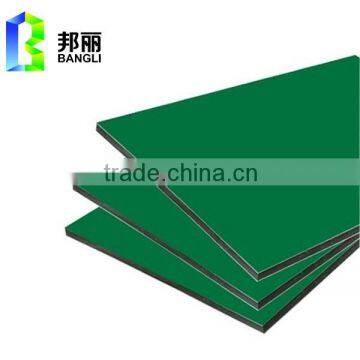

Sign board ACP aluminum composite panel

Sign board ACP aluminum composite panel

Aluminium sheets can be coated with PVDF or Polyester paint. ACPs are frequently used for external cladding of buildings (building facades), for insulation and for signage.

PVDF/PE acp 2mm-6mm thick office building material  aluminium composite panel  is very rigid and strong despite its light weight. Aluminium can be painted in any kind of colour, and ACPs are produced in a wide range of metallic and non-metallic colours as well as patterns that imitate other materials, such as wood or marble.

Applications of ACPs are not limited to external building cladding, but can also be used in any form of cladding such as partitions, false ceilings etc. Aluminium Composite Panels are also widely used within the signage industry as an alternative to heavier, more expensive substrates.

The core is commonly low density Polyethylene or an insulating material no less than 10 cm thick when its use is refrigeration insulation.

Aluminum Composite Panel (acp; Aluminum plastic composite panel)

aluminum composite panel Specifications:

 1) Aluminum sheet thickness: a) 0.5 x 0.5mm b) 0.4 x 0.4mm c) 0.3 x 0.3mm d) 0.21 x 0.21mm e) 0.15 x 0.15mm

2) Panel thickness: 3mm, 4mm

3) Dimensions: a) Width: 1,000mm, 1,220mm, 1,250mm, 1,570mm

                             b) Length: 2440mm,within 6000mm( upon customers' request)

4) Standard specific. (width x length x thickness): a) 1,220 x 2,440 x 3mm  b) 1,220 x 2,440 x 4mm

5) Conventional color: 20 colors for  aluminum composite panel ,6 colors for granite grain panel

6) Non-standard sizes and special colors are available, according to customers' request

Characteristics:

 1) Super peeling strength

2) Excellent surface flatness and smoothness

3) Superior weather, corrosion, pollutant resistance

4) Even coating, various colors

5) Fireproof, excellent heat and sound insulation

6) Superior impact resistance

7) Lightweight and easy to process

8) Easy to maintain

Application scope:

 1) Building exterior curtain walls

2) Decoration and renovation additions for old buildings

3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

4) Shop door decorations

5) Advertisement board display platforms and signboards

6) Wallboards and ceilings for tunnels

7) Industrial materials, materials for vehicles and boats

How to test the Aluminum Composite Panel:

A. First is to see whether the surface is smooth enough, no ripples bubbles and scratches.

B. Second is to check whether the panel thickness and aluminum skin thickness is thick enough.

C. To check the core material, whether it's easy broken.

D. To test the peel strength between aluminum skin and the core.

E. See whether company is normal manufacturer, which have ISO, SGS certificate.

Good raw material is the function of excellent products. We have specialized purchasing agent who has rich experiences and professional knowledge. Only qualified materials can be allowed to put into production.

Installation
