Home > Products > Semi Automatic Block Making Machine > QTJ4-25 cement block machine

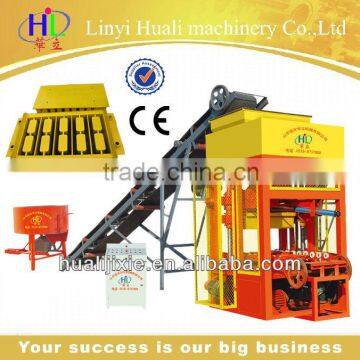

QTJ4-25 cement block machine
- 50 Set / Sets per Month
- qingdao
- T/T D/P D/A Credit Card PayPal
You May Like
-
QHL4-40 tanzania brick making machine for sale
-
QHL4-25 concrete block making machine in Zambia
-
QHL4-25 low cost cement hollow brick making machine price list
-
QTJ4-40 mini concrete block machine,work at home
-
QT4-24 china small brick machine price for sale
-
QT4-24 china concrete vibrated block making machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Vacuum Extruder | Automatic | Yes | |
| Capacity | 4800pcs/8hrs | Place of Origin | Shandong, China | |
| Brand Name | HL | Model Number | QTJ4-25 | |
| Voltage | 380V or according to your local voltage | Power | 18.95kw | |
| Dimension(L*W*H) | 2600*1800*2100mm | Certification | BV/ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
QTJ4-25 cement block machine1.ISO9001/BV
2.low cost,high return
duce different size block
QTJ4-25 cement block machine
(I) Advantages of QTJ4-25 cement block machine
1.PLC control,save the labour.
2.Semi automatic,easy to operate that.
3.The main parts and the block moulds are treated by the high temperature,sturdy and durable.
4.We supply different kinds of the block mould according to your needs.
5.It can change different kinds of the block mould.
6.Need samll area land,less people.
(II)The full set of QTJ4-25 cement block machine as follows:
III)Technical informations of QTJ4-25 cement block machine
moulding cycle | 25-30s |
| rated power | 18.95kw |
| vibration frequency | 2800-4200 r.pm |
| host machine size | 2600x1800x2100mm |
| pallet size | 850x480x30mm |
The workshop area need 40-80 m2,the machine need 4 or 5 workers.
(IV)Capacity of QTJ4-25 cement block machine
item | size(LXWXH) mm | Quantity/hour (pcs) | pcs/mould |
| concrete block | 390x190x190mm | 1000-4800 pcs | 4 |
| solid block | 240x115x53mm | 20000-28000 pcs | 21 |
(V)Block samples:(we can do the block mould according to your needs
(VI)Block mould:
(VII )JQ350 mixer :
overall power | 7.5kw |
Diameter | 1.5m |
Height | 1.5m |
motor type | Y100L2-4 |
speed of main shaft | 19r/min |
speed of motor | 1440r/min |
Mixing time | 5min |
Output | 3m3/h |
(VIII) some real picture:
(IX)We are attending the canton fair:
(X) The ISO9001 Certificate:
