Paver Block Machine Price Qtf3-20 Paving Block Making Machine/manual

paver block machine price qtf3-20 paving block making machine/manual
Main Technology Specifications
Mahine	paving block making machine/manual
Cycle Time	20 seconds
Vibrating Frequency	4600 rolls/minute
Motors Power	14.25KW
Pallet Size	680*530mm
Overall Weight	2000 kg
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag,  gangue, gravel, perlite,and other industrial wastes.
Applied Products	concrete blocks, paving stones with or without face mix, garden and landscaping  products,slabs, edgers, curbstones, grass blocks, slope blocks,interlocking blocks,etc
Applied Fields	widely used in buildings, road paving’s, squares, gardens, landscaping,city  constructions, etc.
Capacity/Productivity

Type	Sample	Size(mm)	Quantity	Molding cycle	QTY/Per hour
Paver block mould		200*100*60	10pcs/mold	15-20s	1800pcs
Paver block mould		225*112.5*60	8pcs/mold	15-20s	1020pcs
Paver block mould		400*200*80	3pcs/mold	15-20s	540pcs
Paver block mould		200*160*60	6pcs/mold	15-20s	1080pcs

factory qt3-20 paving block making machine/manual advantage is just only one machine can make different types bricks,such as hollow block, paver and interlocking block.

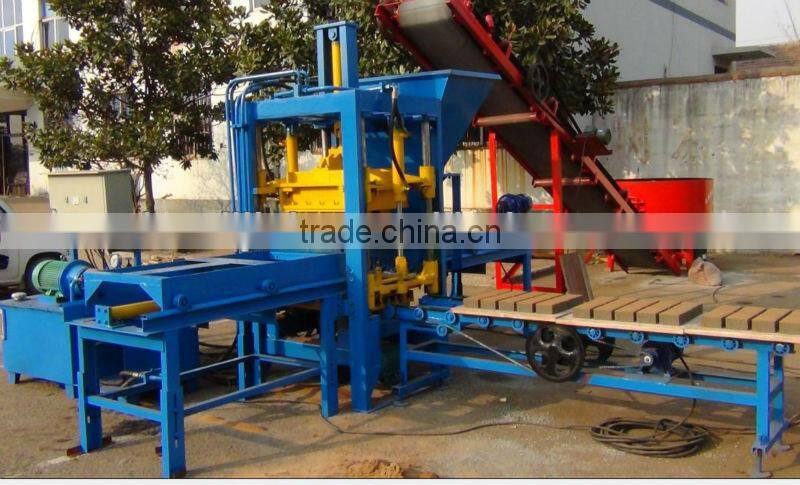

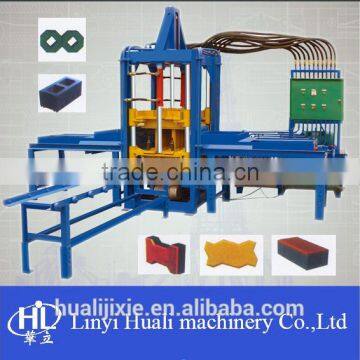

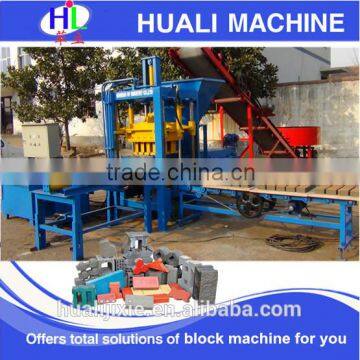

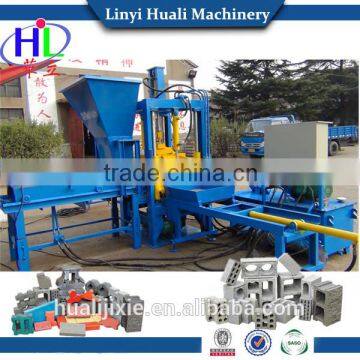

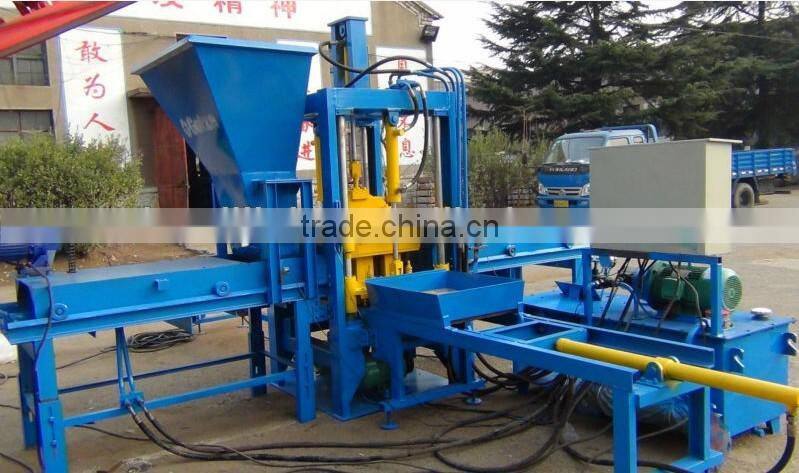

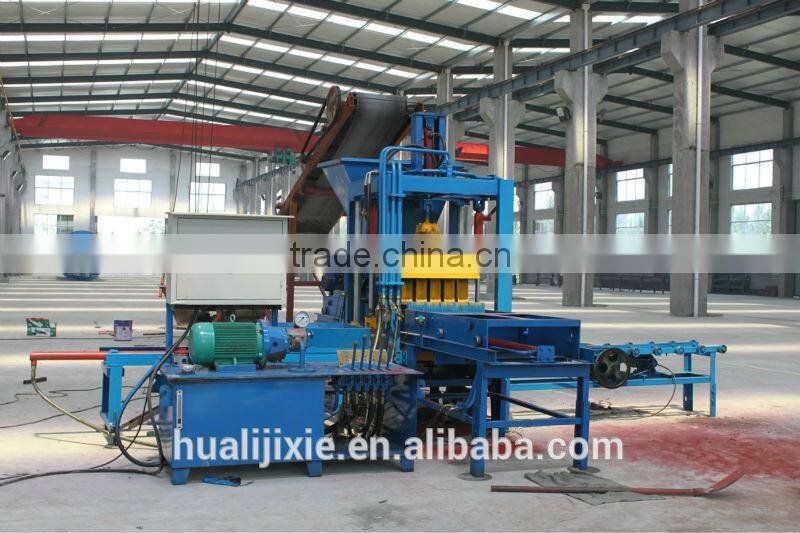

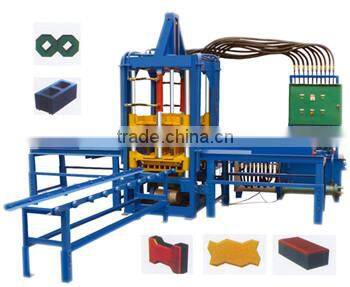

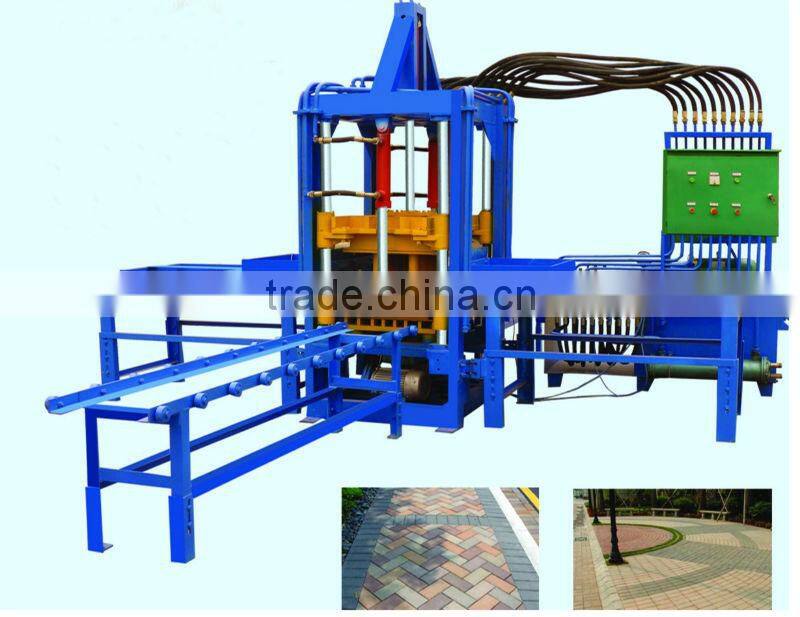

Photoes Show

Brief Introduction

1) paver block machine price qtf3-20 paving block making machine/manual is a compact oil hydraulic machine according to the standard of international ensures the good quality.

2) paver block machine price qtf3-20 paving block making machine/manual vibration system adopt platform vibration and mould vibration so the products is very close grained and produced quickly.

3)Most important thing is only one set this factory qt3-20 hydraulic brick making machine can make different types bricks,such ashollow blocks,solid blocks,paver and interlocking blocks.

4)The novel feeding system gives material exactly and average and assures the products

having a high density.

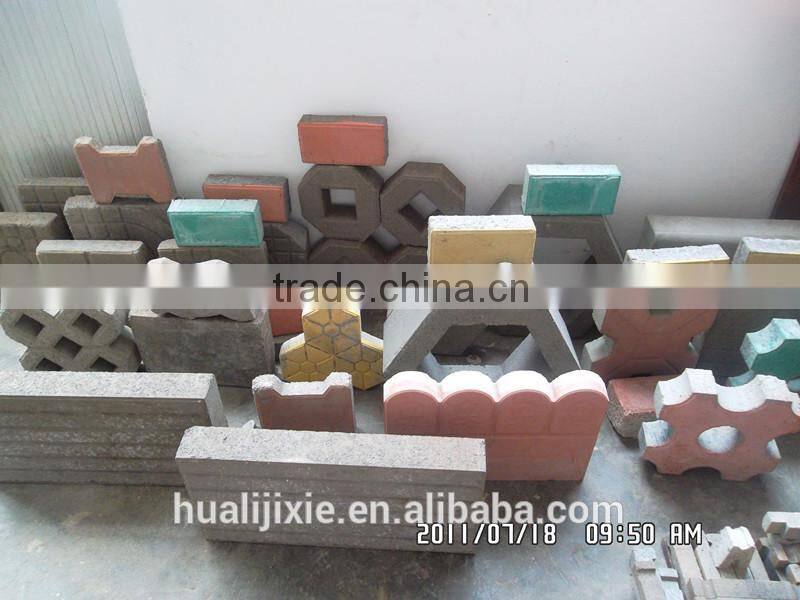

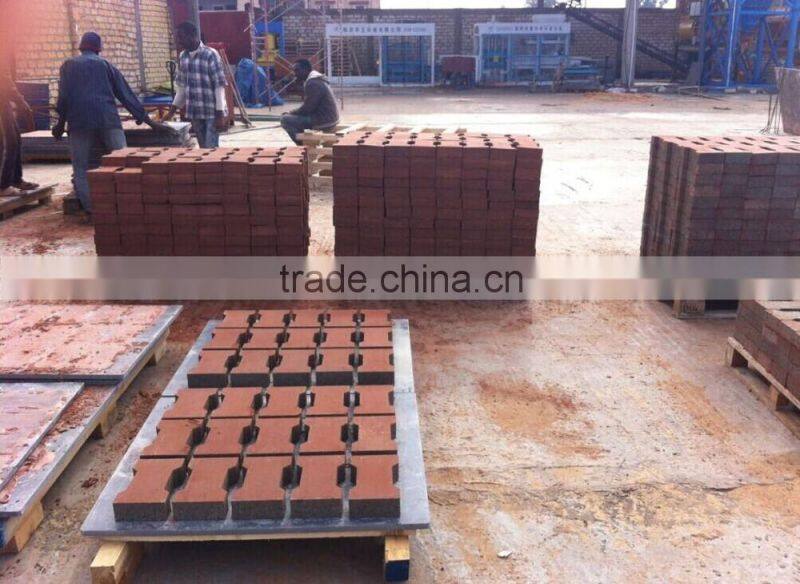

Block Samples

Notes:

1. Area: Workshop area: 80-120 m2, all factory area 500m2, the bigger, the better.

2. Workers : 3 or 4 workers.

3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,

about cement :sand : stone is1:4:5.

4.Hollow block weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

5.Hollow blocks 8-10Mpa,solid bricks 10-12Mpa,pavers and interlocking bricks 12-15Mpa
