AAC prodcution line

Specifications

                                      AAC block production line

Specifications:

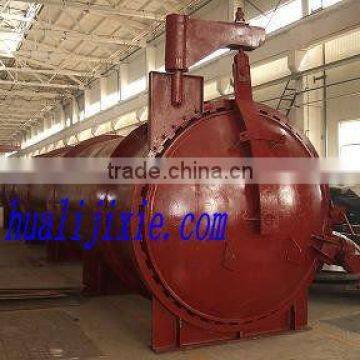

        We can supply completely set of AAC block production line , and the production capacity frome 150000M3-300000M3  per annual . Our AAC  block is through autoclaved , so the compressive reinforcement is high .

Light concrete block machine consists of mixing system,foaming system , output system, hydraulic system and electricity control system.

The AAC block density can be adjusted from 300kg-1900kg/m3

 ^{1) Technology Orientation
Production and application of aerated concrete has a history more than 40 years in China. Viewing from technology point, high quality products can use 3mm special sand slurry technology to meet the construction requests and 50% energy saving goals. (When mortar joint is less than 3mm, take thermal conductivity coefficient of wall as 1; when mortar joint is more than 3mm, take thermal conductivity coefficient of wall as 1.5). Based on the history of the aerated concrete development, only high quality products can bring a prosperous market. Thus, the technology orientation of this scheme is high-class products according to China Standard GB11968-2006.}

^{2) Production Capacity
The product is aerated concrete block and the output is 150,000m₃ per year. The first phase can be equipped according to 100,000m₃ per year. There is a reservation of plate in consideration of user's need.}

^{3) Product Specification
Products conform to requirement of 04~07 grade blocks stated in GB11968-2006.
General Specifications of Aerated Concrete Blocks}
