Wind Generator Motor 300W Max. Combine With Wind/solar Hybrid Controller(LED Display).
- SHANGHAI/SHENGZHN
- T/T Credit Card PayPal
You May Like
-
50w Wind Generator. Combine With Wind Controller.
-
Small Wind Generator 300W Dolphin. Combine With Wind Controller and Inverter.
-
Portable Wind Generator 400W Rated 600w Max. Mppt Build in Controller.
-
230v Wind Turbine Generator. Combine With Wind Controller and Inverter 600w.
-
9000mah Portable Battery Power Bank Charger High Capacity Aluminium Metal Shell Mobile Power USB And Mirco USB Port
-
600w Wind/solar Hybrid Controller 12v/24v With LCD Display
Product Details
| Place of Origin | Jiangsu, China | Brand Name | R&X | |
| Model Number | C-300 | Type | Wind Power Generator |
Product Description
Specifications
wind generator motor1.Start in breeze 3.0m/s
2.Spinning then charging
3.High efficient output.
4.CE,ROHS,ISO9001

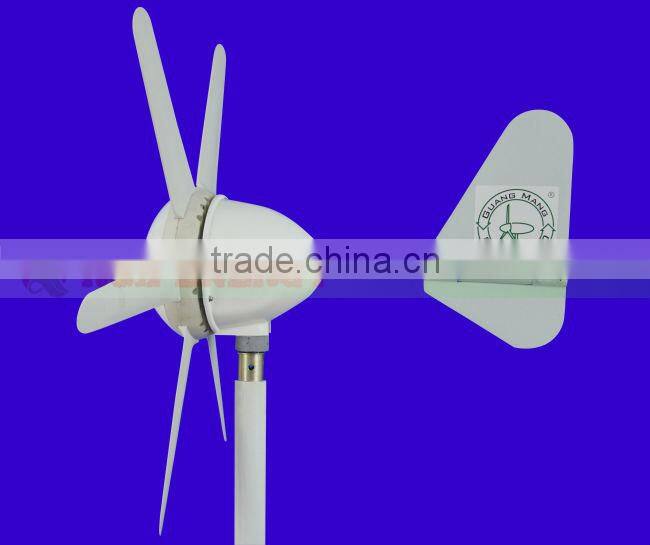

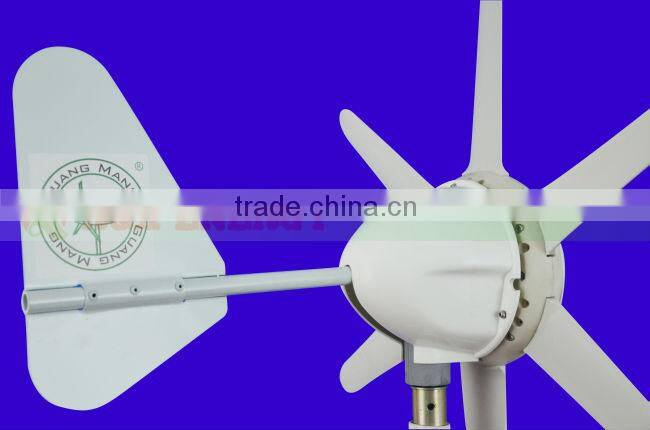

Wind generator motor 300W Max. Combine with wind/solar hybrid controller(LED display).
Sample Purchase online:Click here
Please leave a message about whether you need
12V or 24V.

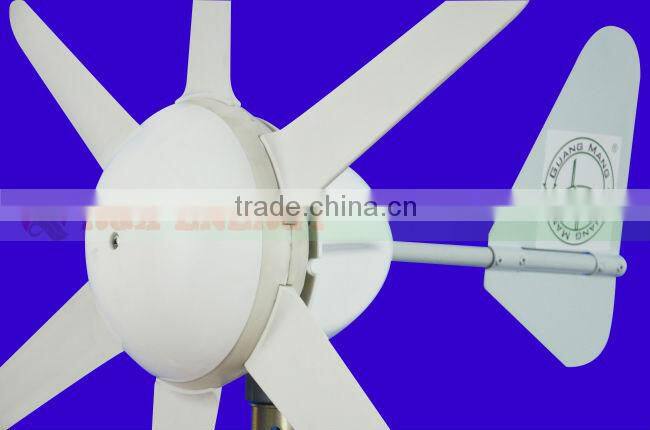

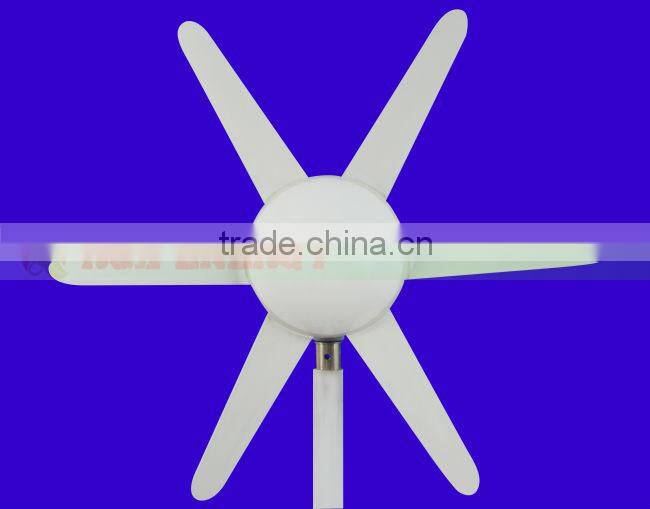

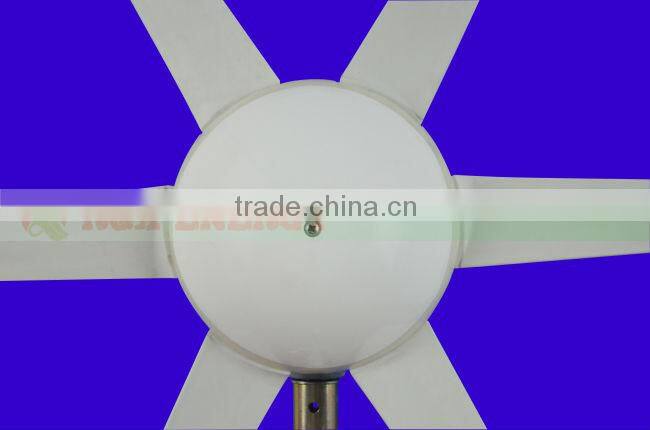

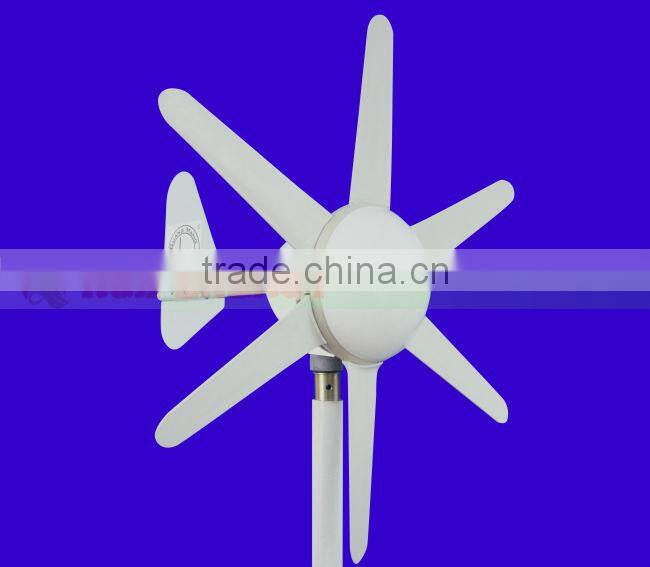

Introduction
The C-300 wind generator is popular wind turbine in home yard, boats, advertising signs, telecommunications tower, etc. Thousands have been sold and are in use worldwide. People have the particular inclination for it’s clean, aerodynamic lines and its quiet and continuous operation. Without any doubt C-300 accumulates more energy than any other comparable wind generator available, you’ll always see a Skywing spinning in the lightest of breezes!
Technical Data
Model | C-300 |
Rated Voltage(DCV) | 12/24 |
Max output(W) | 300 |
Start-up wind speed (M/S) | 1 |
Survival wind speed(M/S) | 35 |
Generator type | Permanent magnet |
Rotor diameter(M) | 0.82 |
Blade No. | 6 |
Blade material | Fiber glass |
Controller | Built-in |
Protection | Short circuit |
Lifetime(years) | 15-20 |
Packing form | plywood,carton |
Package size(mm) | 470*410*330 |
Gross weight(kg) | 13.0kg |

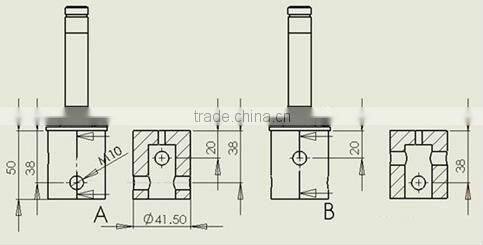

Drawing | |
Monthly Power Generation Cure | |

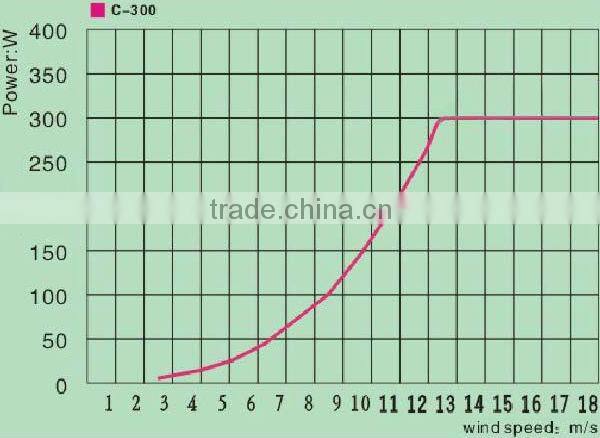

Power Curve |
Description
1. Efficient power conversion - C-300 generate greater ampere-hours in real wind conditions
than turbines of equal and often larger diameter! That’s because between gusts, our unique
high inertia alternator designs maintain momentum with a flywheel effect where other units
stall. This adds up to more free wind power generated and stored for you.
2. C-300 is the lowest cost per watt of power generated. Not only is the generator efficient but
volume production for our worldwide customers and in-house manufacturing ensures that
we deliver a consistently high quality at an affordable cost.

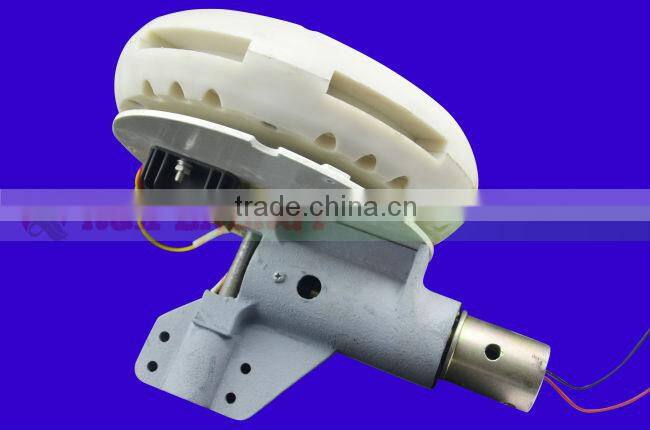

3. Our low friction 3-phase alternator gives a smooth and silent output. The low wind speed
start up means power is almost continuously produced and certainly in the most typical
conditions as well as being powerful in higher winds.
4. C-300 wind turbines are made from computer designed efficient aerofoil blades.
They have a unique and positive one way only fit and have been tested to withstand a
loading with a safety factor 10 times than the turbine’s maximum rpm.
Picture of controller

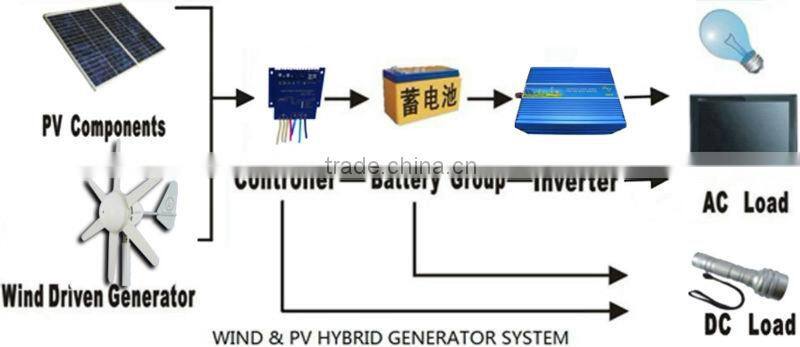

Application
