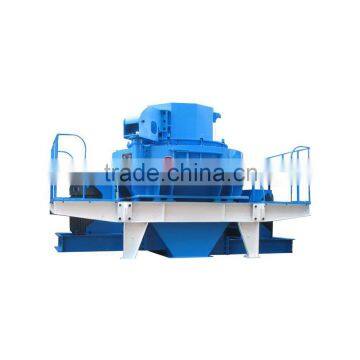

Gold Mining Vertical Shaft Impact Crusher With China Supplier

Introduction of vertical shaft impact crusher

Vertical shaft impact crusher (namely Sand Making Machine) is of the international level high-power and low-consumption no dust equipment, which is designed depending on several year’s hard work and study of mechanical mining equipment combining the advantages of hammer crusher and impact crusher, The Sand Making Machine plays an important role in crushing minerals. The Sand Making Machine produced by our company have enjoyed the higher market share all over the country, won the trust of the customers and gained the consultation from the customers at home and abroad. The  Vertical shaft impact crusher is widely used in all kinds of minerals, cement, refractory materials, bauxite clinker, carborundum, glass raw material, machine making construction sand, stone stock and all kinds of metallurgy slag. This kind of equipment has over 30 years of history, which is originally used for fine crushing of minerals of medium hardness above.

Working Principle of  vertical shaft impact crusher

The Impact crusher is composed of 7 parts including feed hopper, distributor, vortex crushing chamber, impeller body, spindle assembly, base, transmission device, and motors etc.
Materials fall into the impeller from the top of the machine vertically, in the effect of high speed centrifugal force, produce high-speed impact crushing with the materials scattered around the impeller in the form of the umbrella at the other part. After materials impact against each other, produce the vortex with materials, and make the multiple impacts, friction and crush between the impeller and case, discharge out from the bottom vertically, and reach the required size controlled by the screening equipment. The crushed materials are discharged from discharge opening at the bottom. In the whole process of the crushing, the materials impact and crush each other, have no contact with metal components, but crush because of the impact and friction with the material lining, in doing so, reduce the pollution and extend the wear time of machinery.

Application of vertical shaft impact crusher

The series of sand making machine is applied for the crushing and reforming of soft or medium hard and very hard materials, widely used in all kinds of minerals, cement, refractory materials, bauxite clinker, carborundum, glass raw material, machine making construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, silicon carbon, sintered bauxite, magnesite and so on materials with features of very hard and anticorrosion, and is more productive than other kind of crushers.
In the engineering field, it is ideal production equipment of mechanism sand, cushion material, asphalt concrete, and cement concrete aggregate.
In the mining areas, it is widely used in the FEOL of grinding, can produce a lot of powder ores, and reduce the high cost of grinding load.
Because of excellent low wear characteristics, this series of sand making machine is also used for the production of high abrasive and secondary crushing. Besides that, because of the zero pollution of the products, The PCL Vertical shaft impact crusher can be well suitable for the production of glass quartz sand and other high purity materials. The range of 10-500t/h production capacity makes it possible to meet the requirement of any production.

Feature of vertical shaft impact crusher

1. Simple structure and self-impact crushing;
2. Unique bearing installation and advanced spindle design, for the characteristics of high load and high speed rotation.
3. Function of fine crushing and crude grinding; Products are in the cube, big bulk density, small iron pollution
4. High reliability, strict security device, ensuring the equipment and personal safety.
5. Stable operation, Low working noise, high efficiency and energy saving, high crushing efficiency.
6. Slightly influenced by moisture content of material, and the maximum moisture content is about 8%;
7. Low consumption of wearing parts, long service life, small volume, light weight, is easy to change the accessories.
8. Small dust pollution.
9. More wearable and easier maintenance;
10. Diversified installation, mobile installing is available.

Other Product in Our Company

Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.

Pre-sale services

1. Select proper equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Arrange for visiting our factory, assist them to handle relative procedure, such as vis.

Services during the sale
1. Make sure goods prepared within delivery time;
2. Pre-check and accept products ahead of delivery;
3. Prepare documents required to help customer pass customs clearance.
4. Help clients to make Project evaluation and feasibility analysis and draft solving plans.

After-sale services
1. Assist clients to prepare for the first construction scheme;
2. Install, debug and examine the equipment;
3. Train technical personnel the first-line operators;
4. Provide technical exchanging
5. Offer spare parts at a best price for long term.

Henan Zhongke Engineering & Technology Co., Ltd. is specialized in heavy equipment like various crusher, stone jaw crusher, magnetic separators, mining machines, bricks and blocks machines, cement production line. AAC block line, etc. And it is located in the middle of China. Our competitive price, high quality products and excellent aftersales service had gain us good reputation in this field.
