Stone Crusher Vertical Shaft Impact Crusher machinery for Sale

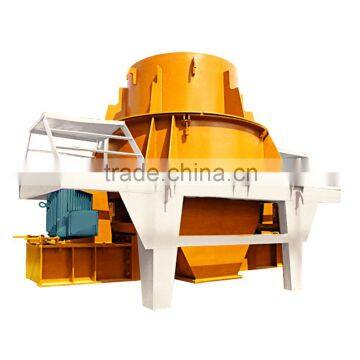

Introduction of  Vertical Shaft Impact Crusher

Vertical Shaft Impact Crusher is also called Sand Making Machine, are widely used in metal and non-metallic minerals, highways, utilities, refractories, abrasives, glass raw materials, urban construction aggregate, artificial sand and a variety of metallurgical slag crushing and coarse grinding operations, especially for medium hard, special hard and abrasive materials, such as silicon carbide, carborundum, sintered bauxite, magnesite, etc., superiors to other types of crushing machines. Equipped with hydraulic protection jaw crusher, can handle a variety of metallurgical slag.

Working principle of  Vertical Shaft Impact Crusher

Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported by conveyor belt. However overlarge material will go back to Vertical Shaft Impact Crusher to be recrushed. Output sizes can be made according to customer’s requirement.

Application of Vertical Shaft Impact Crusher

1.It is used for producing building aggregate, concrete, aggregate for road surface and roadbed, asphalt concrete and cement concrete.
2.It is also used for sand making and shaping in the field of engineering such as water conservancy, hydroelectric power, high-class highway, railway, bridge and municipal works.
3.It is used in fine crushing of ming industry such as building materials, metallurgy, chemical engineer,ming, anti-fire material, cement, etc.
4.Vetrtical shaft impact crusher is used for producing glass raw material and quartz sand ect.

Features of Vertical Shaft Impact Crusher

1. Simple structure and low investment cost.

2. High efficiency and low consumption.
3. Scale board of the impeller is easy in maintenance and seldom damaged.
4. With the function of fine crushing and coarse grinding.
5. Slightly influenced by the moisture content of the material. The max moisture content is 8%.
6. Suitable for crushing materials of middle hardness and high hardness.
7. Cubic shaped finished products, high density of piling up and low iron pollution.
8. Working noise < 75db, and less dust pollution.

Main technical parameters

Other Product in Our Company

Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.

Pre-sale services

1. Select proper equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Arrange for visiting our factory, assist them to handle relative procedure, such as vis.

Services during the sale
1. Make sure goods prepared within delivery time;
2. Pre-check and accept products ahead of delivery;
3. Prepare documents required to help customer pass customs clearance.
4. Help clients to make Project evaluation and feasibility analysis and draft solving plans.

After-sale services
1. Assist clients to prepare for the first construction scheme;
2. Install, debug and examine the equipment;
3. Train technical personnel the first-line operators;
4. Provide technical exchanging
5. Offer spare parts at a best price for long term.

Henan Zhongke Engineering & Technology Co., Ltd. is specialized in heavy equipment like various crusher, stone jaw crusher, magnetic separators, mining machines, bricks and blocks machines, cement production line. AAC block line, etc. And it is located in the middle of China. Our competitive price, high quality products and excellent aftersales service had gain us good reputation in this field.
