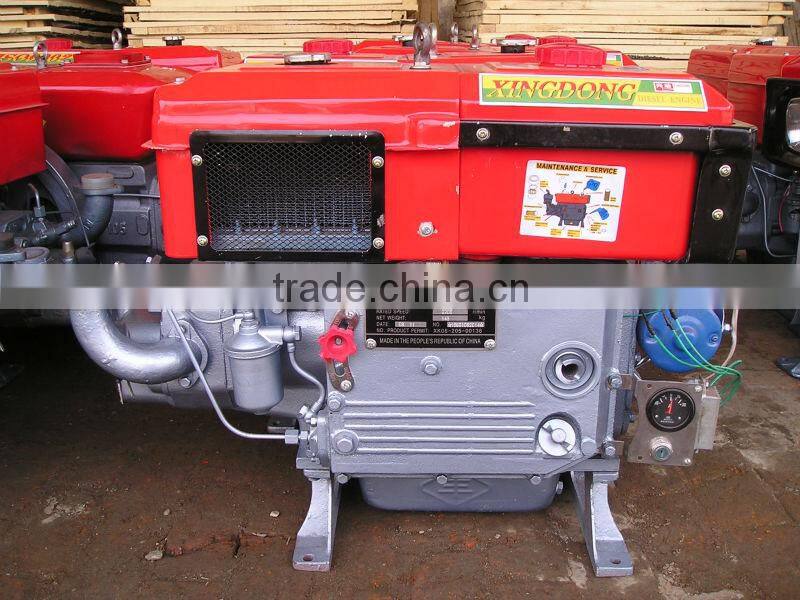

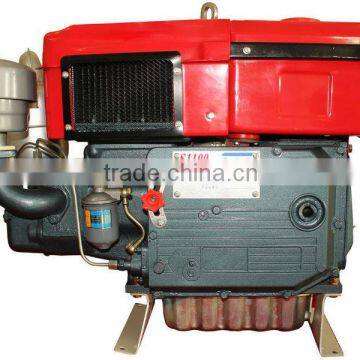

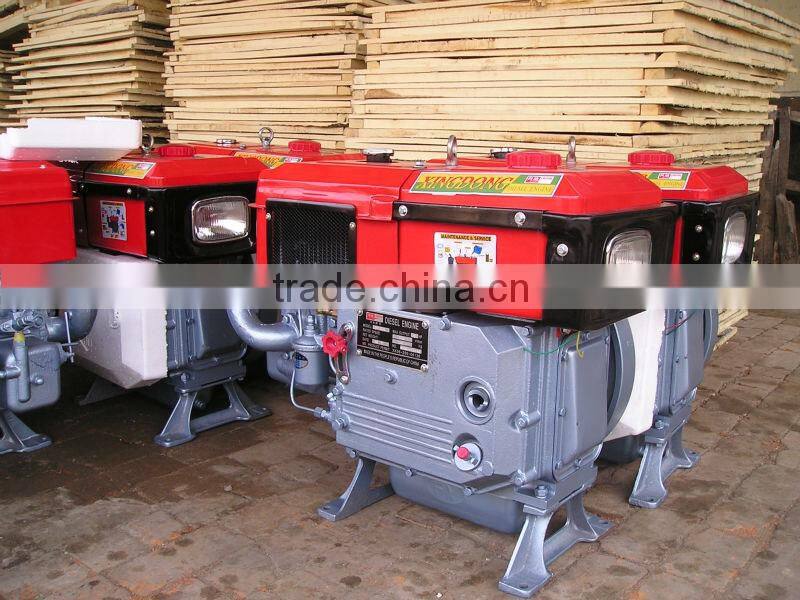

Nice 14hp ZS1100 Water Cooled Diesel Engine
Negotiable
/ Set
10 Sets(Min. Order)
- Shanghai
- T/T
You May Like
-
Cheap Price Diesel Engine S195 (1 Cylinder, 4 Stroke)
-
China Engine Model S195 (12hp, Water Cooled, 1 Cylinder, 4 Stroke)
-
China Diesel Engines Model S195 (12hp, Water Cooled, 1 Cylinder, 4 Stroke)
-
S195 Radiator Diesel Engine (12hp, Water Cooled, 1 Cylinder, 4 Stroke)
-
Single Cylinder Diesel Motorcycle Engine, Water Cooled, Air Cooled
-
Top Level Diesel Motorcycle Engine, Water Cooled, Air Cooled
Product Details
| Condition | New | Usage | Other, walking tractor, pump, generator,etc. | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Water-cooled | |
| Start | Other, electric or recoil | Place of Origin | Jiangsu, China | |
| Brand Name | huiyou | Model Number | ZS1100 . ZS1100NL, ZS1100D , ZS1100ND | |
| Dimension(L*W*H) | 900x440x760 | Weight | 173kg |
Product Description
Specifications
Small size,Light weightBig power,Low fuel consumption
Stabel performance
Reliable operation
Convenient maintenance,etc.
A. Main applications of the diesel engine:
As a power device used for walking tractor, irrigation and generating sets, air compressor, inland ships, engineering machinery, transportation vehicle and processing machines for agricultural products and sideline products.
B. Detailed description
Model | ZS1100 | ZS1100NL | ZS1100D | ZS1100NLD | ZS1100WP |
Type | Single – cylinder, Horizontal, 4 –cycle | ||||
Combustion System | Direct Inject | ||||
Bore xStroke (mm) | 100x115 | ||||
Displacement(L) | 0.903 | ||||
Compression Ratio | 20:1 | ||||
Output/Speed(hp/rpm) | 14/2200 | ||||
Max. Output (hp/rpm) | 16/2200 | ||||
Cooling System | Evaporative | Radiator | Evaporative | Radiator | Evaporative |
Lubrication System | Combined pressure and splash | ||||
Starting Mothod | Hand cranking | Starting motor | Hand cranking | ||
Gross Weight(kg) | 173 | 181 | 189 | 197 | 182 |
PackingSize(LXWXH)(mm) | 900x440x760 | ||||
20’ Container (set) | 96 | ||||
Remark | N-Radiator , D-Starting motor , L-Lamp , WP- Water circulation pump | ||||
