BM3 Hydraulic Motor Totary
Negotiable
/ Piece
20 Pieces(Min. Order)
- SHANGHAI
- T/T Money Gram
You May Like
Product Details
| Type | Hydraulic Motors | Model Number | BM3 | |
| Brand Name | tpf | Place of Origin | Jiangsu, China |
Product Description
BM3 hydraulic motors
One type of LSHT motor,shaft distribution flow with radial force bearing .
| Type | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM3 | BM3 | |
| 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | ||
| Displacement | 124.1 | 14.7 | 200 | 248.3 | 319.2 | 400 | 518 | 666 | |
| Max. speed (rpm) | cont. | 400 | 310 | 250 | 200 | 150 | 125 | 160 | 125 |
| int. | 500 | 400 | 310 | 250 | 200 | 150 | 200 | 160 | |
| Max. torque (N•m) | cont. | 215 | 285 | 347 | 385 | 495 | 477 | 772 | 993 |
| int. | 268 | 355 | 459 | 470 | 568 | 620 | 1054 | 1355 | |
| Max. output (kW) | cont. | 8.8 | 9 | 9 | 8 | 8 | 6 | 13 | 13 |
| int. | 11 | 11 | 11 | 10 | 9 | 9 | 17 | 17 | |
| ure drop (MPa) | rated. | 14 | 14 | 14 | 12.5 | 12.5 | 10 | 12.5 | 12.5 |
| cont. | 17 | 17 | 17 | 14 | 14 | 12.5 | 16 | 16 | |
| Inlet.presure drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 7.2 | 7.8 | 8.1 | 8.4 | 9 | 9.5 | 17.5 | 18.5 | |

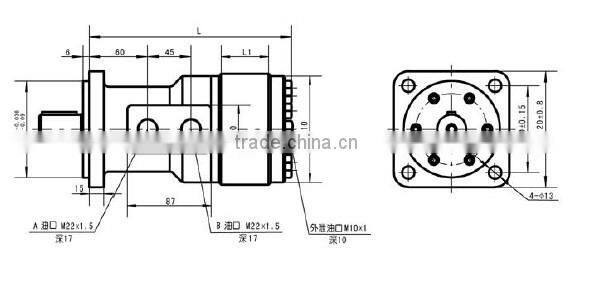

BM3:
