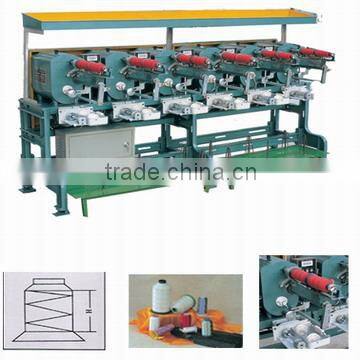

King Spooling Thread Winding Machine (CL-2C)
- Ningbo Port.
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Application | textile machines | |
| Type | Winder Machine | Production Capacity | 12cones/time | |
| Place of Origin | Zhejiang, China | Brand Name | DingMing | |
| Model Number | CL-2C | Spinning Method | Ring Spinning | |
| Automatic | Other, semi-automatic | Dimension(L*W*H) | 2.15m*0.8m*1.15m | |
| Weight | 500KG, 500Kg | Power(W) | 1.08KW | |
| Certification | CE | After-sales Service Provided | Overseas service center available |
Product Description
CL-2C king spooling thread winding machine is designed to wind perfect embroidery thread , fishnet thread which are lubricous, applicable for thread plants, embroidery plants and so on.
Thread winding machine applications:
1 This machine is semi-automatic.
2 New generation electronic counter auto measuring length or circle was optinized and accuracy.
3 With yarn broken detective sensor to stop only the spindle when yarn broken.
4.With electronic tension adjusting device, precise and stable.
5.With automatic memory function when the machine stopped by power outage.
6 With silicone-oiling device and small tank to lube the thread.
7 With the hopper and belt housing.
8 No maintenace low noise with smooth working,easy operation and maintenance.
9 CE approval.
Thread winding machine specification:
1 Traverse: 1.8to 8 As Per Specific Requirment Of Clientss
2 Spindles: 6
3 Cones: 1 to 2 Cones On Each Spindle
4 Drive: Individual Motor For Each Spindle
5 Motor: 1400 roll/minute, 440V/380V/220V 60HZ/50HZ 180W
6 Spindle Speed: 150-200m/minute
7 Max Wound Up to Weight: 1000g
8 Winding Of Yarn Like: Lubricous Yarn & Thread.
9 Measurement:2.17*0.8*1.25m^3.
10 Weight:N.W. 550kg; G.W. 650kg.
