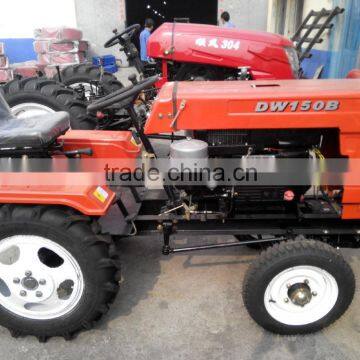

woow!!!! HUAXIA new chinese tractor trailer load capacity

1).OVERALL UNIT

Transmission box: special steel casting transmission

Main dimension(mm): L   2200 x W  970x H   1120

Wheelbase:(mm)      1150

Wheel tread:

front wheel(mm)  850

Rear-wheel(mm)  800

Mini-ground clearance(transmission bottom)  (mm)    200

Mini-turning circus  radius:(m)         2

Structural weight:(kg) 420

Theoretical speed:   km/h

First gear   2.24

second gear    3.48

third gear    5.62

First reverse gear   1.72

Second reverse gear    6.97

2) ENGINE MAIN SPECIFICATION

Engine model:    R190   JDZ195

Engine type: horizontal, single cylinder, four stroke

Rated turning speed:  r/min      2400

Rated power: HP   10HP      12.5HP

Cooling type: evaporative cooling, condense

3).DRIVE SYSTEM

1.clutch      dry type, double , normally jointing and fricting type.

Final drive:    single stage spur gear transmission

3.differential:   support  conical planetary gear reducer

4.transmission:   (3+1)*2 cylinder gear drive

5.brake:   external shoe type brake

6.drive type between engine and clutch: triangle belt

7.drive type between PTO and hydraulic pump :V-belt

4).TRAVEL AND TURNING SYSTEM

Front axle:  adjustable separating type

Tyre type:  front wheel   4.00-8/4.0-12

Rear-wheel   6.00-12/6.5-16

Tyre pressure:

Front wheel: 600kpa

Rear-wheel: 250kpa

Steering gear: worming gear type

Toe-in of front wheel(mm):   4~8

Front-wheel camber: 2⁰±30^’

king pin inclination: 7⁰±15^’

kingpin caster: 3⁰±15^’

5.WORKING DEVICE:

Lifting mechanism:

(1) manual(lever lifting, ratchet holding.)

(2)hydraulic lifting

(3)Type:split pump : CBN-E304 gear pump

Safety valve setting pressure(mpa):   16

lifting time(s): ≤2

PTO:

1.type:sidely placed dependent type

2.turning speed :r/min:   1378

3.turning direction:   clockwise

6).ELECTRICAL DEVICES

Generator  type:  YONGCI-branded flywheel generator   12V   250W

Front headlight: 12V   40W/100W

Indicator:      12V   20W

Double gear switch: JK107

7).MAIN FILLING QUANTITY

Hydraulic tank:  L    1.5

Help and Support Centre - Frequently Asked Questions

  Q. I'm a complete tractor novice, never driven one in my life - can you help me?
A. Absolutely! Your new tractor comes with a training DVD and instruction manual. If you still need assistance, we're only a phone call away - we're here to help.

Q: Why are HuaxiaTractors such awesome value for money?
A: Huaxia Tractors are awesome value because we are manufacturer. We have no commercial lease to pay. Tractors and implements are stored in a  rural shed, so we pass the savings directly on to you.

Q: Do implements require any assembly?
A: Yes. Most implements have some assembly required, they're typically partially assembled for transportation. Tightening of all bolts is required.

Q: What lubrication do implements require?
A: Unless otherwise stated, all implements with gearboxes, such as slashers, post hole borers and rotary tillers, are shipped dry and require the addition of gear oil.

Q: Is the three point linkage limited to just two positions? (Up or down).
A: No. The three point linkage can be stopped at any position.

Q: What type of three-point linkage does the tractor have?
A: The tractor has a Category 1 three-point linkage

Q: How much weight can the three point linkage lift?
A: This depends on which model tractor you purchase. Please review the specifications page.

Q: How much fuel does the tractor use?
A: Approximately 5 - 7 litres per hour, depending on engine capacity, speed, load, etc.
Please review the specifications page for more information.

Q: What speed and power does the PTO deliver?
A: The PTO has dual speeds: 540 / 1000 RPM.

Q: What type of brakes does the tractor have?
A: The Fumetsu has Non-Hydraulic Drum Brakes on the rear wheels.
