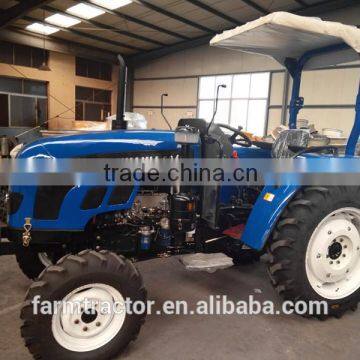

2016 new type 60hp multi-purpose farm mini tractor
- Qingdao
- T/T
You May Like
-
Competitve price on multi-purpose farm mini tractor
-
HUAXIA best agriculture tractor from chinese Manufacturers
-
HUAXIA high quality farming machine from chinese Manufacturers
-
HUAXIA high quality farm tractor made in china
-
HUAXIA high quality new farm tractors and equipments from china
-
HUAXIA high quality chinese farm tractors
Product Details
| Condition | New | Type | Other, Wheel Tractor, massey ferguson tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 44.1KW | |
| Certificate | CE | Brand Name | HUAXIA | |
| Model Number | JX604 | Place of Origin | Shandong, China | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
40-60HP Tractor specification
John Deere Chassis ,4 Cylinder Engine
MODEL | UNITS | 550 | 554 | 600 | 604 | |
ENGINE |
| 4 cylinder JD Brand Diesel engine (JIANGDONG POWER) | ||||
Type |
| In-line,water cooled,4-stroke,natural aspirated | ||||
Model |
| JD4102 | JD4102 | JD4108 | JD4108 | |
Homolo gated power | kw | 40.44 | 44.12 | |||
Rated speed | R/min | 2400 | 2400 | 2400 | 2400 | |
No. of cylinders |
| 4 | 4 | 4 | 4 | |
Max. Exhaust gas emperature | °C | ≤600 | ≤600 | ≤600 | ≤600 | |
Aspiration |
| natural aspirated | ||||
Spark in sequence |
| 1-3-4-2 | ||||
Bore/Stroke | mm | 102mm*105mm | 102mm*105mm | |||
Displacement | L | 3.432 | 3.432 | 3.432 | 3.432 | |
Max torque operation | N.m | ≥185 | ≥185 | ≥188 | ≥188 | |
Fuel consumption | g/kw.h | ≤245.0 | ≤245.0 | ≤245.0 | ≤245.0 | |
Oil consumption | g/kw.h | ≤2.04 | ≤2.04 | ≤2.04 | ≤2.04 | |
oil pressure | Kpa | Normal working: 200-500. Idle speed working::≥80 | ||||
CLUTCH |
| Single Disc, Dry, Dual-Stage, constant meshed | ||||
TRANSMISSION |
|
| ||||
Gear box |
| 2 axis 4X(2+1) gear group type | ||||
Shifting |
| meshing sleeve gear shifting | ||||
Differential Gears |
| Double planet wheels, closed type | ||||
Differential lock |
| Pin type | ||||
Final transmission |
| Planet wheel type | ||||
PTO SHAFT |
|
| ||||
Type |
| Independent and synchronous P.T.O. | ||||
Speeds | R/min | 540/760 or 540/1000 or 760/1000 | ||||
Spine shaft shape |
| 6 GEARS RECTANGLE SPLINE | ||||
HYDRAULICS |
|
| ||||
Three point linkage |
| Category II | ||||
Control |
| Position | ||||
Hydraulic output adaptor |
| Size: M16X1.5, quantity: 1; output flow rate: 20L/min | ||||
Implements
Huaxia Tractor is one of the leading companies specializing in the R & D, design & manufacturing farm tractors, garden tractors, corn harvester, loaders and other farm implements.
We have sophisticated employees, advanced technologies and equipments, all our manufacturing procedures are carried out in strict accordance with quality control system. And our products ranges from 10hp to 150hp.
Any help or service you need can be provided at anytime, as soon as possible. Your satisfaction is our driving force.
lor
Any color you like, we can paint it for you.
2. Warranty time
We supply you 2 years warranty time.
3. Spare Parts
The easy-damage parts, we will send you together with the tractor for free. And in the warranty period, if the spare part does not work because of the quality, we will send you new parts for free.
4. Tool Box
We will send you the tool box for free.
(1). Manufacturer or Trading Company
We are a leading tractor manufacturer for 14 years, and specialize in 12-150Hp tractors in China.
(2). MOQ
1 unit
(3). Spare Parts
Free toolbox and easy wear parts.
(4). Shippment
We can help you arrange shippment.
(5). Delivery Time
Usually 25 days
(6). Warranty Time
Complete service system, 18 months since arrival of destination port
(7). Payment Terms
We accept 30%T/T in advance, and 70% T/T after shipping or L/C at sight.
(8). Tractor Options
Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire, Turf Tire or as per your requirements.
(9). Tractor Logo
We have our own logo. And we also can make your own logo in your order for free.
(10). Package and Loading qty
1.Nude Package: 3 complete units/40GP, 3 complete units with Cabin/40HQ
2.SKD Iron Frame Package: 8 units/40HQ
(11). Tractor Implements
Loader, Mower, Plough, Trailer, Slasher, Snow Blower or as per your requirements.
(12). Part supply
Complete Parts Workshop, and can supply all parts, pic as below
For More Details, Please contact us
