Interior Fireproof Aluminium Composite Panel
- QINGDAO
- T/T Credit Card PayPal
You May Like
-
Fireproof Brushed Aluminum Sandwich Panel/aluminium Composite Panel Price
-
Linyi Fireproof Wall Materials Aluminum Composite Panel
-
Building Facade Cladding Fireproof Aluminum Composite Panel/ACM/ACP
-
Fireproof Metal Silver Aluminum Composite Panel
-
Alushine Aluminum Honeycomb Core Composite Panel With Firepoof Core
-
Fireproof Function Aluminum Composite Panel
Product Details
| Place of Origin | Shandong, China | Brand Name | Sunshine | |
| Model Number | PVDF | Usage | Outdoor | |
| Function | Anti-Static, Antibacterial, Fireproof, Mould-Proof | Surface Treatment | Anodized, Brushed, Mirror, PE Coated, PVDF Coated |
Product Description

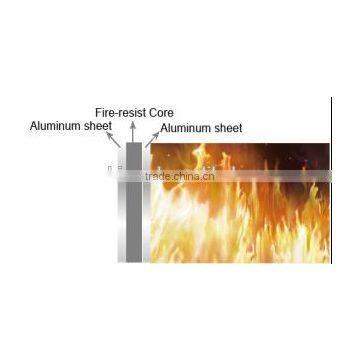

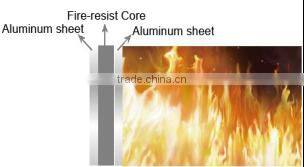

Fireproof Aluminum Composite Panel
The product is in high demand due to the increasing importance placed on architectural requests for safe, non- toxic and green materials. The panels also possess excellent flame retardant and low smoke emission properties.
Surface coating: PVDF, Polyester, FEVE, Nano-PVDF, Spectra
Back coating: primer coating
Features:
1.Excellent fire resistance, hardly flammable
2.Excellent sound , heat insulation
3.Superior impact & peel strength
4.Excellent surface flatness & smoothness
5.Light weight & easy to maintain.
6.Coating evenness, diversified colors & different textures are available on request
7.Bright, elegant and magnificent,easily be cut and shaped fit for various designs
Application:
1) Exterior wall of building, Curtain wall
2) Refitting or renovating of old building exterior wall
3) The balcony, equipment unit, interior compartments
4) Panel, logo plate, display platform
5) The interior wall decoration panel, ceiling, advertising board
6) Industrial usage, cold car body etc..

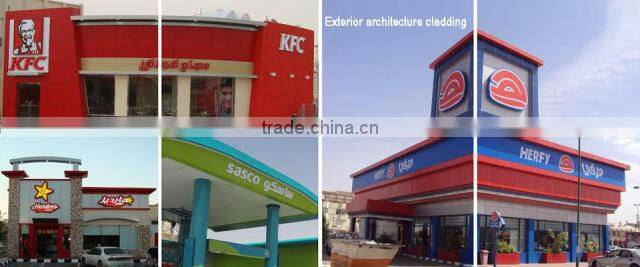

Exterior architecture cladding

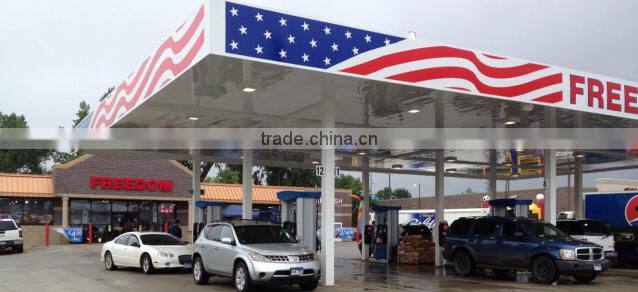

Gas Station

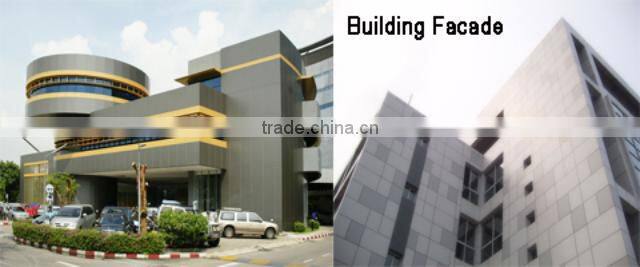

Building Facade
The contrast of fire-resist performance in different countries:
Standard Burning Degree | China | Germany | U.S.A | France | U.K | Japan | Russia |
GB-T8627 | DIN4102 | ASTME84 | BS 476 | NFF 16-101 | JIS K6911 | 30244-94 | |
Few | A | A1, A2 | NC | 0 | M0 | 1 | T1 |
Minor | B1 | B1 | A | 1 | M1, M2 | 2 | T2 |
Normal | B2 | B2 | B,C | 2,3 | M3 | 3 | T3 |
Serious | B3 | B3 |
| 4 | M4, M5 |
|
The level and combustion properties of names:
Degree | Item | Degree | Item |
A | None-combustion | B2 | Combustion |
B1 | Hard- combustion | B3 | Combustible |
Degree | Material | The combustion performance indicators | |
None-combustion | Class A Materials | According to GB/T8625 test , the average length of the remaining ≤35cm(including any residual specimen length ≥20cm) for each test and average flue gas temperature peak ≤150℃,no specimen back burner the scene; | |
According to GB/8627 test . Their smoke density levels(SDR)≤15; | |||
According to GB/T14002 and GB/T14403 test, its calorific value≤4.2M/kg, and the specimen thermal emission per unit area≤16.8/m², toxicity materials combustion flu gas of the entire non- lethal concentration of ≥25mg/L. | |||
Hard-combustion | Class B1 Materials | According to GB/T8626 test. Its combustion properties should be met GB/T8626, and does not allow any dropping of combustion burn the filter paper;
| |
According to GB/8625 test, the average of each specimen remaining length ≥15cm (including any residual specimen length ≥0cm), and average peak temperature of gas≤200℃ in each test.
| |||
According to GB/8627 test , their smoke density levels (SOR)≤75 | |||
Specification
Aluminum skin thickness | 0.12mm-0.50mm |
Total panel thickness | 2mm-10mm |
Panel Width | 1000mm,1220mm (regular), 1250mm,1300mm,1500mm,1550mm, 1575mm,2000mm(maximum); |
Panel Length | Up to 6500mm or according to your request |
Standard size | 1220mm(Width) ×2440mm(Length) Non-standard sizes depending on your offers |
Standard color | 30kinds, special color available upon request |
Surface Treatment | PVDF coating and PE coating
|
PE core Material: | Non-toxic and low-density Polyethylene |
Dimensional tolerance
Panel Width | ± 2mm |
Panel Length | ± 3mm |
Panel Thickness | ±0.2mm |
Panel Diagonal | ≤5mm |
Aluminum sheet thickness | ± 0.02mm |
Packaging Details | < 1 > Wooden box Or in bulk < 2 > Weight: 5.5kg/M2 based on 0.5/4mm thickness < 3 > Standard size: 1220x2440mm < 4 > Qty/20'fcl: 4mm/2380M2 , 3mm/2977M2 with Wooden box < 5 > Qty/40'fc: 4mm/4750M2 , 3mm/6200M2 in bulk |
Delivery Detail | 15 ~ 20days after got deposit. |
Quality Control
The quality is core competence and development,we were established a complete Physics and Chemistry Lab with professional team.
According to the requirement of clients, the Lab is able to make precise tests and certification for various performance test standard of the products.
Such as the required glossiness, boiling water resistance, and resistance to change of temperature can be ensured by the physical performance test. The required coating thickness , pencil hardness, grinding resistance, soil resistance can be ensured by the coating performance test. The bending strength, and impact strength can be analyzed by the mechanical property test. The acid resistance , alkali resistance, oil resistance and salt-spry resistance can be analyzed by the solvent resistance performance test. Such tests ensure that the various performance targets of the Sunshine aluminum panels reach the requirements of industrial standards.
Color Chart
The following colors for your choice, you can also customize the color

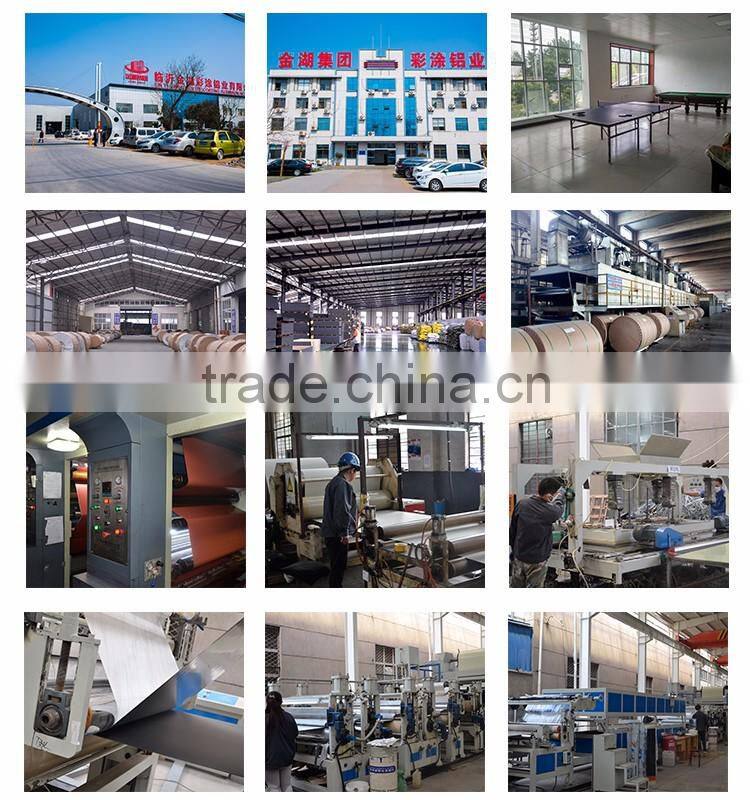

SUNSHINE is located in the comprehensive free trade zone in Linyi city,Shandong Province.We are near Qingdao port.We specialize in manufacturing the SUNSHINE brand aluminum composite panel,coated aluminum coils and architectural construction material.Our manufacturing plant covers an area of 170 acres and its building area is 130,000 square meters,with registered capital RMB 350 million.SUNSHINE is equipped with advanced production lines including four precision lines and ten continuous laminated lines.These guarantee SUNSHINE annual production output of over 30,000 tons coated aluminum coils and about 1.5 million square meters ACP.
SUNSHINE is one of biggest aluminum processing manufacturers in the North of China.SUNSHINE is part of JINHU Aluminum Group which founded in 2003.JINHU Aluminum Group is the professional aluminum manufacturer for coated aluminum coil,embossed aluminum coil,aluminum strips,aluminum ceiling.Whole set aluminum processing supply chains and rich experience in aluminum technology allow SUNSHINE offer a very good quality building material for global market.To ensure wo keep up with modern architectual trends and styles,we invest much in research and development,personal training.
We have been successfully marketing our products to the Middle East,South-east Asia,South Asia,Africa,Russia,East Europe,Latin America and welcomed with both product quality adn price by clients.
SUNSHINE inside on the tenet” take customer as focus,market as guidance,strive for development
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How soon can I get a price quote?
A: With in 12 hours, once we got the your detail requirement.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the free sample but the freight charge should be collected..
Q: How long is your delivery time?
A: 15 - 20 days after got the deposit.
Q: Can I produced by my brand?
Yes,you can.
You just need to send your brand or LOGO design to us.
Q: What is the MOQ?
Due to high machine setup cost and shipping freight,our minimum order quantity is 1000 m2.
Recommend you to order a 20''GP to save the packing and shipping cost.
