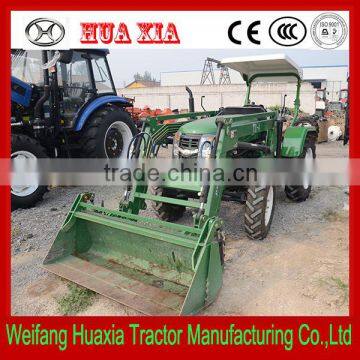

HUAXIA hot sale four wheel tractor with cabin

1,free tool box and free easy damage parts.

2, warranty time is 18 months after the goods delivery your port.

3,delivery time is 20 days for one container.

4.8 units in one 20ft container.16units in one 40ft container.

5.every color we can do for you.

6.we can do the tractor with your logo in your order.(It Is Free)

7.we can find a good shipping company for you.

8. Our business model is both wholesale and retail, so our MOQ is one piece.

9.payment term is T/T30% in advance ,70% T/T after the shipping

Engine: 4 Stroke, Fuel Injected Diesel Engine,Vertical Bore

25 HP Engine

Engine Displacement: 1.6L

Number of Cylinders: 3 inline

Engine Orientation: Longitudinal

Rated Engine Power: 25HP / 18 KW @ 1,850 RPM

(Max 2,300 RPM)

Tractive Force: 7.6KN

Bore x Stroke: 85mm x 95mm

Top Nominal Speed: 20-30 Km/h

Fuel: Diesel

Fuel Tank Capacity: 21 Litres (4.5 Gallons)

Fuel Consumption: Approx 5-6 L/hr (238 g/kWh)

Cooling: Water Cooled

Transmission: 8 speed Manual gearbox with 2 speed reverse

Clutch: Dry Single Plate Type, spiral spring press, constant mesh, dual stage

Drive: Rear Wheel Drive with selectable 2WD / 4WD and Differential Locks

Differential: Closed, Planetary Reduction Bevel Gears

Differential Lock: Column & Peg Type

Transfer Case: Straight Cut Cylindrical Gears

Steering, Wheels, Brakes & Suspension

Suspension: Front beam rocking axle.

Brakes: Non-Hydraulic Drum Brakes, Rear Wheels Only

Front Tyre Sizes: 6 x 14 inch

Rear Tyre Sizes: 9.5 x 24 inch

Available Tread Types: Agricultural Turf

Steering: Hydraulic Power Steering

Measurements & Weights

Weight: 1,280 Kg

Front End Loader Capacity: 300 Kg

Wheelbase: 1,710 mm

Overall Length: 3,030 mm

Rear Track: 1,500 mm Adjustable

Front Track: 1,400 mm

Turning Circle (With 1-side braking): 2,800 mm

Turning Circle (Without braking): 3,200 mm

Height (to exhaust): 1,900 mm

Overall Height (to roof/canopy): 2,070 mm

Ground Clearance: 320 mm
