BeStableCam HORIZON H4 Lite 3 Axis Gimbal For a7rii nex 5n nex 7 gh4 lce-7r ilce-5100

Description:

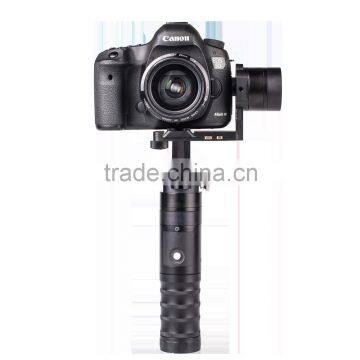

The BeStableCam H4 Pistol Camera Stabilizer designed to easily mount cameras such as BMPCC, Panasonic GH4/GH3/Sony A7s and Nex 5/6/7 and other compact / DSLR cameras on the market. The Pistol Grip styling allows for exceptional handling and portability while vibrations and ambient shaking are virtually eliminated whilst shooting video.


The H4,with its 3-Axis brushless gimbal with encoder technology have more smooth shots every time.Pan, tilt, rotate, tracking, low or high; The The H4 incorporates a “State-of-the-Art” Stabilizing System that will stun viewers and provide a clear and vivid view of any scene, whilst enableing otherwise impossible camera moves.


The H4 3-Axis Brushless Handheld Gimbal is programmed with 4 operational modes that help facilitate a wider variety of camera movements, and its long-life battery allows for up to 10 hours of continual use.

All of these features combined with the comfortable Pistol Grip and its lightweight makes the addition of hours H4 to a cameraman’s inventory equate to longer time in the field and higher quality shots on any shoot.

Features


- Metal Aluminium alloy CNC construction
- Supports camera/lens combos up to 1,000 grams/1 kg/2.2 lbs
- Supports: Sony A7 series (400g lens limitations), Pansonic GH3,GH4,NEX series, Lumix Series , BMPCC
- Easy to Easy to adjust the center of gravity.
- 4 Operating Modes – Follow, Locked mode, Head Lock, Invert Mode
- Battery cells 18650 x 3.
- Ready to use in Handheld Mode
- Batteries can operate up 10 hours when fully charged.
- Bluetooth control and tuning via Android on both Mac and PC (Option)
- BeStableCam Specialized Gimbal Drive Motors with Encoders
- Brushless motor technology
- LEDs indicate the battery level.
- New Encoder technology is more efficient.
- Handle seperated,battery removeable



Specifications:


- Dimension: 353 x 196 x 78mm
- Weight: 810g
- Motor Load: 1.2kg
- Battery: 11.1V 1800mAh
- Battery Duration: 10 Hours depend with the camera load

Modes:

Mode 1: Heading Follow Mode – The Camera slowly tracks your movements.
Mode 2: Heading Lock Mode – The operator can‘t move any direction and camera stays locked in one position.
Mode 3: Heading and Pitch Follow Mode – The Camera slowly tracks your movements on pan and tilt axis.
Mode 4: Inverted Mode – An inverted mode can be achieved by flipping the gimbal upside-down in follow mode or you can restart in an inverted mode.

*Modes can also be customized in the software. Other example modes: inverted mode, turn motors off/on, set tilt angles by hand, faster follow mode...An inverted mode can be achieved by flipping the gimbal upside-down in follow mode or you can restart in an inverted mode.

H4 Pistol Camera Stabilizer Mode Operating Steps:


- Turn on the power,the default mode is heading follow mode
- Click the mode button 2 times, to activate the joystick function,you can manually operate the pan and tilt with a joystick.(Use joystick control from this step)
- Click the mode button 3 times continuously, it is in heading lock mode,the operator can‘t move any direction and camera stays locked in one position.
- Click the mode button 4 times continuously, it is in heading and pitch follow mode,the camera slowly tracks your movements on pan and tilt axis.
- Long press the mode button till the motores are off,flipping the gimbal upside-down in follow mode and click 5 times to start the gimbal in inverted mode.

Package Includes:

-1 x H4 3-axis Pistol Camera Stabilizer
-1 x Charger
-1 x Manual
- EVA foamed insert portable case
