air cylinder for breathing apparatus
- DALIAN
- Credit Card
You May Like
Product Details
| Material | Aluminium | Use | Other, air | |
| Pressure | High | Place of Origin | Liaoning, China | |
| Brand Name | CLD | Model Number | FQC |
Product Description
Specifications
1.Material:aluminum 6061 and imported carbon fiber2.Service pressure:20~30 MPa
3.Capacity:0.45~50 L
4.Diameter:60~352 mm
Our advantages:
- China's biggest aluminum and aluminum carbon composite cylinders manufacture.
- Cylinders are made by high strength aluminum or aluminum & carbon fiber, thus the weight is 40%~70% lighter than convention steel cylinder .
- Advanced construction and producing technology provide long working duration and high safety factor.
- Cylinders can be made to many safety standards all over the world, such as TPEP,CE,etc.
Carbon wrapped cylinder:
- Winding layers: imported superior quality carbon fibers, epoxy and other materials.
- Manufacturing procedure: punching drawing, heat treatment,CNC flow forming spinning and inner surface treatment.
- Available in carbon-wrapped and fiberglass-wrapped model.
- Wide range of sizes and capacities.
Specification:
Model | Diameter(mm) | Water capacity(Lts) | Length(mm) | Empty weight(kg) | Working pressure(bar) |
FQC60-0.45-30 | 60 | 0.45 | 290 | 0.5 | 300 |
FQC60-0.5-30 | 60 | 0.5 | 310 | 0.6 | 300 |
FQC100-1.2-20 | 100 | 1.2 | 280 | 0.9 | 200 |
FQC101-1.5-30 | 101 | 1.5 | 324 | 1.3 | 300 |
FQC108-1.5-20 | 108 | 1.5 | 270 | 0.9 | 200 |
FQC113-1.6-20 | 113 | 1.6 | 268 | 0.9 | 200 |
FQC113-2.0-20 | 113 | 2.0 | 320 | 1.4 | 200 |
FQC101-2.0-30 | 101 | 2.0 | 405 | 1.6 | 300 |
FQC116-2.0-20 | 116 | 2.0 | 306 | 1.4 | 200 |
FQC118-2.0-30 | 118 | 2.0 | 330 | 1.6 | 300 |
FQC120-2.2-20 | 120 | 2.2 | 320 | 1.3 | 200 |
FQC132-2.2-20 | 132 | 2.2 | 257 | 1.5 | 200 |
FQC128-2.4-20 | 128 | 2.4 | 306 | 1.6 | 200 |
FQC128-2.5-20 | 128 | 2.5 | 315 | 1.6 | 200 |
FQC132-2.7-20 | 132 | 2.7 | 315 | 1.4 | 200 |
FQC115-3.0-30 | 115 | 3 | 454 | 2 | 300 |
FQC136-3.0-30 | 136 | 3 | 352 | 2 | 300 |

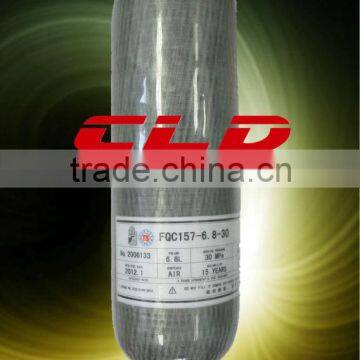

FQC157-6.8-30 | 157 | 6.8 | 533 | 3.9 | 300 |
FQC174-9.0-30 | 174 | 9 | 570 | 5.1 | 300 |
FQC196-12-30 | 196 | 12 | 605 | 6.5 | 300 |
