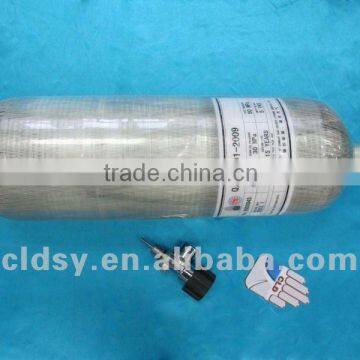

Fully wrapped carbon glass aluminum lined cylinder
USD $95 - $1,600
/ Piece
30 Pieces(Min.Order)
- DALIAN
- Credit Card
You May Like
Product Details
| Material | Aluminium | Use | Industrial Gas | |
| Pressure | High | Place of Origin | Liaoning, China | |
| Brand Name | CLD | Model Number | FQC |
Product Description
Specifications
1.Material:aluminum 6061 and imported carbon fiber2.Service pressure:20~30 MPa
3.Capacity:0.45~50 L
4.Diameter:60~352 mm
Our advantages:
- China's biggest aluminum and aluminum carbon composite cylinders manufacture.
- Cylinders are made by high strength aluminum or aluminum & carbon fiber, thus the weight is 40%~70% lighter than convention steel cylinder .
- Advanced construction and producing technology provide long working duration and high safety factor.
- Cylinders can be made to many safety standards all over the word, such as TPEP,CE,etc.
Carbon wrapped cylinder:
- Winding layers: imported superior quality carbon fibers, epoxy and other materials.
- Manufacturing procedure: punching drawing, heat treatment,CNC flow forming spinning and inner surface treatment.
- Wide range of sizes and capacities.
Fully-wrapped composite cylinder:
- Available in carbon-wrapped and fiberglass-wrapped models.
- Manufactured to all recognized international standards.
- Most compact, lightest-weight cylinders available up to70 percent light than steel cylinders.
- Minimum burst pressure tested to more than 3 times service pressure without failure.
| Specifications | Diameter | Water capacity | Length | Empty weight | Working pressure | |||||
| mm | in | lts | cu in | mm | in | kgs | lbs | bar | psi | |
| FQC60-0.45-30 | 60 | 2.36 | 0.45 | 27.45 | 280 | 11.02 | 0.5 | 1.10 | 300 | 4350 |
| FQC60-0.5-30 | 0.5 | 30.50 | 310 | 12.20 | 0.6 | 1.32 | ||||
| FQC100-1.2-20 | 100 | 3.94 | 1.2 | 73.20 | 280 | 11.02 | 0.9 | 1.98 | 200 | 2900 |
| FQC101-1.5-30 | 101 | 3.98 | 1.5 | 91.50 | 324 | 12.76 | 1.30 | 2.87 | 300 | 4350 |
| FQC108-1.5-20 | 108 | 4.25 | 270 | 10.63 | 0.9 | 1.98 | 200 | 2900 | ||
| FQC113-1.6-20 | 113 | 4.45 | 1.6 | 97.60 | 268 | 10.55 | ||||
| FQC113-2.0-20 | 2 | 122.00 | 320 | 12.60 | 1.4 | 3.09 | ||||
| FQC101-2.0-30 | 101 | 3.98 | 405 | 15.94 | 1.6 | 3.53 | 300 | 4350 | ||
| FQC116-2.0-20 | 116 | 4.57 | 292 | 11.50 | 1.4 | 3.09 | 200 | 2900 | ||
| FQC118-2.0-30 | 118 | 4.65 | 330 | 12.99 | 1.6 | 3.53 | 300 | 4350 | ||
| FQC120-2.2-20 | 120 | 4.72 | 2.2 | 134.20 | 320 | 12.60 | 1.3 | 2.87 | 200 | 2900 |
| FQC132-2.2-20 | 132 | 5.20 | 257 | 10.12 | 1.35 | 2.98 | ||||
| FQC128-2.4-20 | 128 | 5.04 | 2.4 | 146.40 | 306 | 12.05 | 1.5 | 3.31 | ||
| FQC128-2.5-20 | 2.5 | 152.50 | 315 | 12.40 | ||||||
| FQC132-2.7-20 | 132 | 5.20 | 2.7 | 164.70 | 1.4 | 3.09 | ||||
| FQC115-3.0-30 | 115 | 4.53 | 3 | 183.00 | 454 | 17.87 | 2 | 4.41 | 300 | 4350 |
| FQC136-3.0-30 | 136 | 5.35 | 352 | 13.86 | ||||||
| FQC157-6.8-30 | 157 | 6.18 | 6.8 | 414.80 | 533 | 20.98 | 3.9 | 8.60 | ||
| FQC174-9.0-30 | 174 | 6.85 | 9 | 549.00 | 570 | 22.44 | 5.1 | 11.24 | ||
| FQC196-12-30 | 196 | 7.72 | 12 | 732.00 | 605 | 23.82 | 6.5 | 14.33 | ||
| FQC220-20-25 | 220 | 8.66 | 20 | 1220.00 | 770 | 30.31 | 11 | 24.25 | 250 | 3625 |
| FQC222-20-30 | 12 | 26.46 | 300 | 4350 | ||||||
| FQC352-50-30 | 352 | 13.86 | 50 | 3050.00 | 795 | 31.30 | 26 | 57.32 | ||
