802.11b/g/n High Speed 4G LTE Cloud Storage Router

Product Introduction

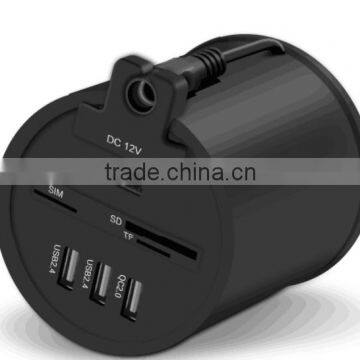

C9 802.11b/g/n 4G LTE cloud storage router is perfect all-in-one network solution for vehicle. This multifunctional router integrate one 4G LTE modem and sim card slot, users can connect and shared the high rate of 4G LTE Internet connection in the vehicle; On the other hand, This router integrates multi interfaces card reader, user can share the content store in the SD/TF card after the cards plug into router. And more ,this product provide quick smarter charging , 2ports for 5V/2.1A ,one port for 12/2.1A.  This router support NAT firewall of SPI, intelligent traffic control technology and user friendly management interface based on WebUI or Apps. The built-in wireless AP support, a new wireless standard IEEE802.11n downward compatible with 802.11 b/g standard at the same time. IEEE802.11n wireless network standard adopts advanced MIMO (multi into more) technology for high speed and wide coverage of wireless transmission. Wireless transmission rate of up to 150 Mbps, It can provide enough bandwidth for the application of the high bandwidth requirements, can watch online video at the same time, to listen  digital music, playing online games, transferring large files, VoIP calls and surf the web site. In order to better improve the effectiveness of wireless applications, WiFi (WMM) multimedia technology can sort through the priority queue for different applications, to ensure that the application effect of optimization. In order to protect the user's wireless connection, prevent not authenticated user access, support the latest WPA/connected wireless safety standards. 64/128 bit WEP encryption also support, By analyzing individual data packets, integrate the SPI NAT firewall to prevent the hacker attacks and DoS attacks, to ensure that only certified packets can access the network.The realization of the function of all this, only through the simple management based on WebUI.

1.2 Product Overview

       C9 802.11N 150M 4G LTE cloud storage router is using the latest generation of 40 micron technology SOC chip, a 580 MHZ MIPS cpu core, built-in 64k byte I-cache and 32k byte D-cache and HT 11n MAC/BBP, RF support 2.4 GHz 1T2R MIMO wireless transceiver unit.
Features:
 Built-in FDD 4G LTE modem

 In accordance with the IEEE 802.11 g, IEEE 802.11 b, IEEE802.11 n draft v2.0, IEEE 802.3 and the standard of the IEEE 802.3 u
 Support CSMA/CA, CSMA/CD, TCP/IP, PPPoE, DHCP, ICMP, NAT protocol

 Support port automatically turning (Auto MDI/MDIX)
 Support 64/128 bit WEP encryption, Support the WPA, WPA2, IEEE 802.11 I, TKIP encryption and security mechanism
 Support SSID broadcasting control and access control based on MAC address
 Built-in DHCP server, and static address allocation
 Built-in SPI NAT firewall, support the PING, broadcast, multicast packet filtering and MAC address, IP address, URL, and the  content of the domain name filtering
 Support static routing
 Support virtual server, the DMZ host
 Support to prevent the DoS attack, with functions of automatic virus isolation
 Second-ranking supports universal plug and play (UPnP), DDNS function
 MAC address modification and cloning

 Support remote and Web management
 Provide manual reset button to restore factory default settings.

1.3 Specification
