4G Modem Support OEM product

MODULE

IM906

* CHIPSET

 Qualcomm MDM9200

size

95mm(length)X35mm( width)X10mm(height)=32g(weight)

* Frequancy

FDD-LTE: B3/B7/B20(2100 MHz+1800 MHz)

DC-HSPA+/HSPA+/HSPA/UMTS: 2100MHz

GSM/GPRS/EDGE: 850MHz/900MHz/1800MHz/1900MHz

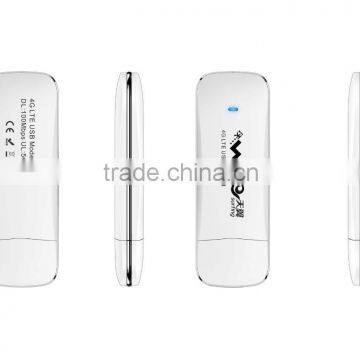

4G USB Stick

hardware description

*max launch power

ü  LTE FDD B3/B7/B20: Power Class 3 (23dBm)

ü  WCDMA/HSPA+ 2100MHz: Power Class 3 (24dBm)

ü  GSM/GPRS 900MHz/850MHz: Power Class 4 (33dBm)

ü  GSM/GPRS 1800MHz/1900MHz: Power Class 1 (30dBm)

ü  EDGE 900MHz/850MHz: Power Class E2 (27dBm)

ü  EDGE 1800MHz/1900MHz: Power Class E2 (26dBm)

* Static receiving sensitivity

ü  LTE FDD B3/B7/B20: follow 3GPP TS 36.101(R8)

ü  WCDMA/HSPA+ 2100MHz: follow 3GPP TS 25.101(R8)

ü  GSM/GPRS/EDGE 850MHz/900MHz/1800MHz/1900MHz: follow with 3GPP TS 05.05 (R99)

* Speed(U/L)

software description

*SMS

ü  Send/receive/delete messages

ü  Group SMS Send

ü  Text messages can be stored in a PC or (U) SIM

ü  Rank

ü  New message hink

* traffic statistics

ü  The current connection time, upload/download speed and etc

ü  Reset time, the current day/month/year flow statistics

* phone book

ü  Storage: determined by the SIM/USIM card or hard disk space

ü  Can send message via phone book

ü  Import/export: in fixed format between the SIM/USIM card and computer import/export

* Network connection configuration

ü  APN manage

* DIFx

ü  hilink,manual installation

* PINmanage

ü  Activate/to activate PIN

ü  Change the PIN

ü  PUK

* other

l  Network connection Settings

l  Automatic search registration

ü  Manual search registration

ü  Network status show that signal strength, operator name, network system, etc

*System

ü  Support Windows XP SP2/SP3, Windows Vista SP1/SP2, Windows 7/8

ü  Support Mac OS X 10.5; 10.6; 10.7;10.8 and over

ü  resolution ratio:800 X 600 and over

Connector

* antenna

ü  internal

* USB

ü  High speed USB 2.0

*power

ü  Standard USB

* SIM Card slot

ü  standard 6 PIN SIM card slot

* TF card slot

ü  Micro-SD, MAX support 32GB

 Other

normal operating temperature range

0°C to +45°C

* Limit working temperature range

-10°C to +55°C

* storage temperature

-20°C to +70°C
