Product Description
Specifications
1.geocell machines2.made of HDPE MATERIAL
3.HIPS,PE,PP material of geocell
4.geocell machinery
2Shanghai Hongjin Ultrasonic Electronic equipment Factory
Automatic ultrasonic machine for GeoWeb / Geocell
production of geo cell
For our customer, we have completed the manufacturing of a new machine for the production of geosynthetic sheets, sometimes called Geocell, as the current machine is the third generation of automated appliances to have undergone dynamic development While the two previous generations delivered solid performance, we have added a number of improvements. The device now offers maximum variability, enabling the production of foils of almost any pitch,
Current machine generation is flexible for different distances between welds and also for different foil length so it's ready to suit demand for many producers with different geocell parameters.

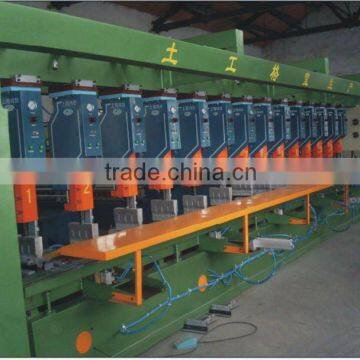

Machine Pictures:
Shanghai Hongjin Automatic ultrasonic machine for GeoWeb / Geocell Technical parameters:
Geocell welding mold-digit | HJM-11 | HJM-14 | HJM-15 | HJM-18 | HJM-22 |
No.of welding heads | 11 unit | 14 unit | 15 unit | 18 unit | 22 unit |
Max. Power | 28.6KW | 36.4KW | 36.6KW | 46.8KW | 57.2KW |
Ultrasonic Vibrating Power | 16.5KW | 21KW | 23KW | 27KW | 33KW |
SIZE OF THE EQUIPMENT (L*W*H)(M | 6.5*1.89*2.26 | 7*1.89*2.26 | 8*1.89*2.26 | 8*1.89*2.26 | 9*1.89*2.26 |
WEIGHTNESS | 5TONS | 5.5TONGS | 5.8TONS | 6TONS | 6.5TONS |
POWER | AC380V N 50-60HZ | ||||
AIR PRESS | 0.6~0.9MPa | ||||
AIR COMPESSOR DISPLACEMENT | ≥2.5~3.0/min | ||||
VOLOUM OF AIR COMPRESSOR AIR STORAGE | 1.5~2.0M3 | 2.5~3.0M3 | |||
WELDING DISTANCE SCOPE | 220-1000mm | ||||
GEOCELL STRIP WIDTH | 220MM MAX (ADJUSTABLE ACCORDING TO THE SIZE OF WELDING HEAD) | ||||
DAILY OUTPUT (REF) | 4500SQM | 4800SQM | 5000SQM | 5200SQM | 8000SQM |
product pictures:
products use for:
(1) to stable the bed of railway and road
(2) to bear the bed of road
(3) to bear the loading dykes and walls
(4) to administer shallow water and river
(5) to support pipeline and sewer
(6) to prevent landslide and to be used as compound walls to support loading
(7) to be used in dependent walls,wharfs and bank and so on
(8) to govern sand,beach,river bank and riverbed
