Laser Marking Machine for Plastic Bottle

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Laser Type	CO2		Place of Origin	Zhejiang, China
Brand Name	D&S

Product Description

Specifications

1) Laser power: 10/20/30/ optional
2) Max working area:70*70/110*110/220*220/300*300mm optional
laser marking machine

Name:

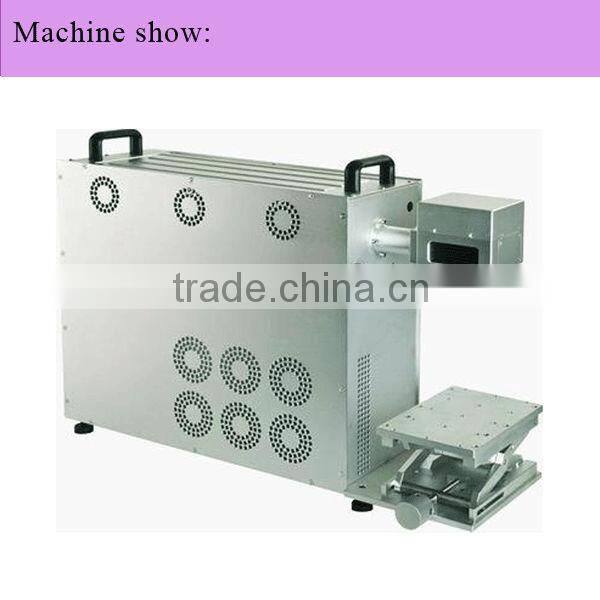

Portable fiber laser marking machine

Application:

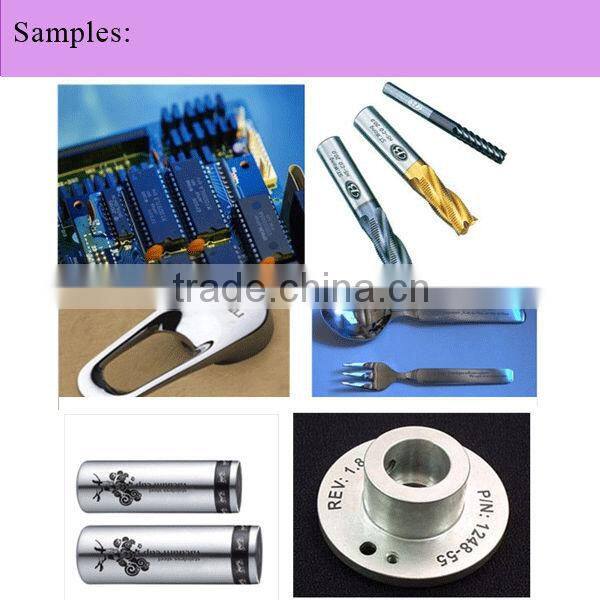

Fiber laser marking machine is widely used in integrated circuit chips, computer accessories, industrial bearings, watches, microelectronics and communications products, sanitary ware, glasses, aerospace components, a variety of automotive parts, home appliances, hardware tools, wire and cable, food packaging, jewelry and many other fields, such as graphics and text markup.

Specifications:

Laser repetition rate	1080nm
Laser power	10W/20W/30W optional
Laser repetition frequency	20KHz~100KHz
Marking area	7070/110110/220220/300300mm optional
Marking speed	Max15000mm/s
Repeat accuracy	0.002mm
Location precision	0.002mm
Marking depth	0.01-0.5mm(According to the material and decision
Min.line width	0.5 mm
Cooling system	force-air cooling
Power supply	2φ 220V 50Hz 1.0KW
Weight	15KG

Features:

1) This machine is compact and portable. At any time convenient to move and adapt to a variety of processing environments.

2) The one-piece chassis stability better. Full Metal Jacket stability and anti-interference ability.

3) Energy conservation and environmental protection.The machine forced air cooling, electro-optical conversion efficiency as high as 28%. Machine power 1.0KW

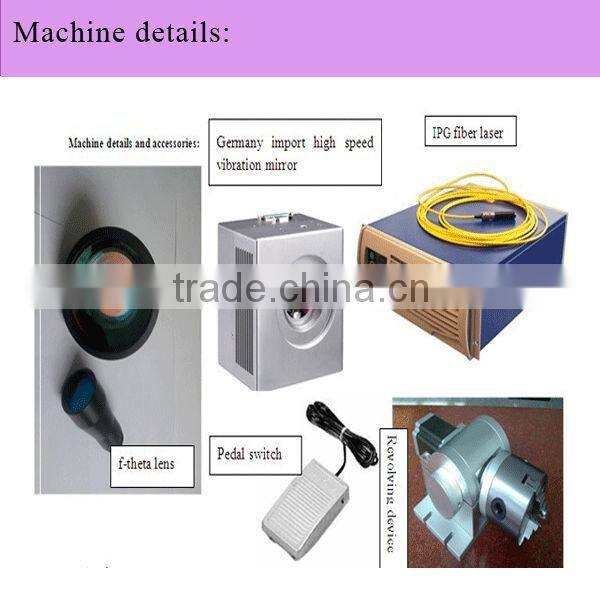

4) Marking speed. The machine uses the German imports high-speed galvanometer with IPG lasers. Marking speed up to 15000mm / s. Exquisite perfection.
