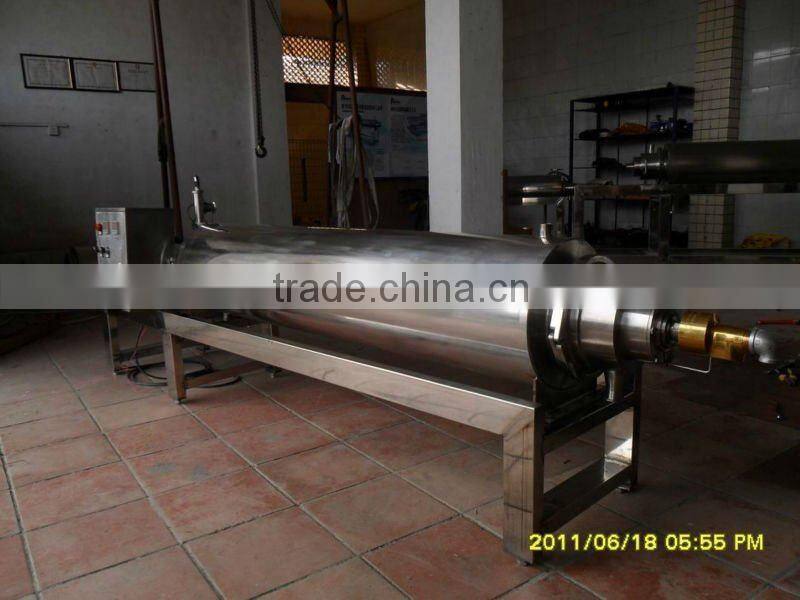

DS-H36 Palm Oil Heating Machine

Scraped surface palm oil heating machine is used for scraping the surface mechanical stirring device (rotor) stirring the liquid devices, curettage and updates on the heat transfer surface of the liquid boundary layer (film) to enhance heat transfer heat exchanger. The picture shows the scraped surface heat exchanger of the typical structure, which consists of housing and rotor components. Shell from the inner cylinder and the outer tube form. Is the heat transfer tube in tube, tube be processed through the material (A liquid); outer tube of jacket, comprising a heat transfer medium through (B fluid). Rotor rotating at work. The outer edge of the rotor scraping, stirring and scraping from the film role. The rotor speed is generally 100 to 800 r / min, depending on the viscosity of materials and equipment, the size of the diameter varies. High viscosity, large diameter, the speed should be small, but also as low as 10 to 20 rev / min. Scraped surface heat exchanger is a major feature film role in stirring and scraping the material is not easy to scale the wall in the heat, so it suitable for high viscosity or contains solid particles of the slurry fluid and other easy to scale heat exchanger. This heat exchanger is not only the heat exchanger can be used as a general heating or cooling, but also as a process accompanied by heat or dissolved reactor uses.
