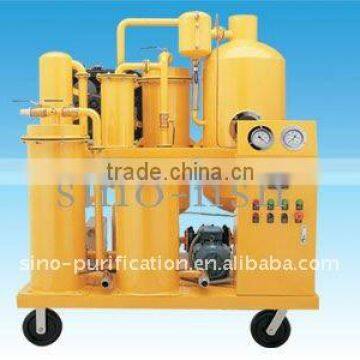

Vacuum Insulation Oil Purifier-1000sdsdff
- shanghai
- T/T
You May Like
Product Details
| Brand Name | sino-nsh | Model Number | vf-1000sddf |
Product Description
Specifications
Relative ModelsVF-A Vacuum Insulation Oil Automation Purifier
VF-R Vacuum Insulation Oil Regeneration Purifier
VF-T Vac
VF series vacuum insulation oil purifier is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers.
Equipped with regenerators, it can improve the effect of de-acid, de-color and remove dielectric and acid more effectively.
The value of breakdown voltage will increase from 15KV to 65KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.
Custom options are available.
contact us:sinonsh707
1. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
2. Enhance the value of breakdown voltage greatly.
1. Easy handling and maintenance.
2. Inject oil into the transformers
3. Online work
Technical Specification
Item | Unit | VF-10 | VF-20 | VF-30 | VF-50 | VF-100 | VF-150 | VF-200 | |
Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
Vacuum Range | Mpa | -0.065 ~ -0.096 | |||||||
Working Pressure | Mpa | ≤ 0.3 | |||||||
Max Vacuum Range | Pa | ≤ 100 | |||||||
Temperature Range | ºC | 45 ~ 80 | |||||||
Breakdown Voltage | kV | ≥ 60 | |||||||
Impurity Size | μ m | ≤ 5 | |||||||
Water Content | PPM | ≤ 7 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Power Supply | V | 380V/50Hz(or as needed) | |||||||
Working Noise | dB | ≤ 70 | ≤ 75 | ||||||
Heating Power | Kw | 9 | 15 | 20 | 36 | 60 | 90 | 108 | |
Total Power | Kw | 11 | 17 | 23 | 40 | 64 | 95 | 113 | |
Pipeline Diameter | mm | DN25 | DN25 | DN25 | DN32 | DN40 | DN50 | DN50 | |
Net Weight | Kg | 300 | 320 | 350 | 400 | 500 | 800 | 1000 | |
Size | length | mm | 1050 | 1100 | 1200 | 1500 | 1700 | 1750 | 1800 |
width | mm | 750 | 800 | 900 | 1100 | 1200 | 1250 | 1400 | |
high | mm | 1350 | 1350 | 1400 | 1650 | 1850 | 1900 | 2000 | |
