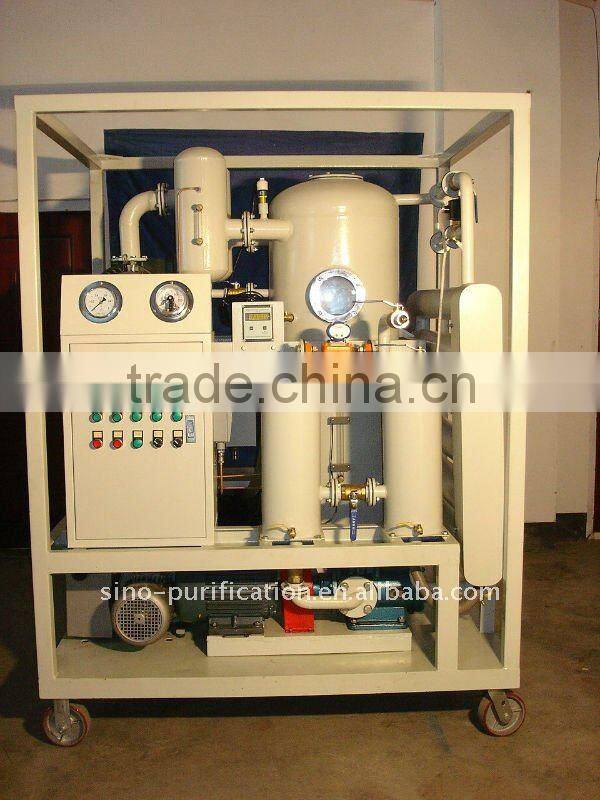

VFD series insulation oil Degasify purifier
- 100 Set / Sets per Month
- Chongqing Shanghai
- T/T
You May Like
-
Vacuum double-stage insulation oil filtration device
-
High Effective Vacuum Oil Purifier With Low Price
-
NSH RD Series Oil Regeneration Devicer With Good Quality
-
NSH Insulation Oil filter With Strong Purification
-
Waste Fuel Oil Purification, Filtration, Regeneration Machinery
-
Vacuum Oil Centrifuging Machine,Oil Purifier
Product Details
| Condition | New | Flow | 1800-18000L/H | |
| Working Pressure | ≤0.2Mpa | Place of Origin | Chongqing, China | |
| Brand Name | NSH | Model Number | VFD | |
| Usage | Insulation Oil | Voltage | 380V/3P/50Hz(or as needed) | |
| Power(W) | 35-254Kw | Dimension(L*W*H) | standard | |
| Weight | 550-2200Kg | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Transformer Oil Purification
1. To remove impurities
2.High efficiency and effectiveness
3. Easy handling and maintenance
insulation oil purifier, oil regeneration, oil recycling, oil purification, oil treatment , oil recovery, oil processing, oil filtering, oil filtration, oil restoration, oil disposal, oil reclamation, oil purify
VFD insulating oil recycling system is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Description
NSH VFD series utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 |
Vacuum Range | Mpa | _0.092 ~ -0.099 | ||||||
Working Pressure | Mpa | ≤ 0.3 | ||||||
Max Vacuum Range | Pa | ≤ 50 | ||||||
Temperature Range | centidegree | 45 ~80 | ||||||
Breakdown Voltage | kV | ≥ 75 | ||||||
Impurity Size | μ m | ≤ 5 | ||||||
Dielectric Loss | tgδ | ≤ 0.005 | ||||||
Interfacial Tension | mN/m | ≥ 40 | ||||||
Water Content | PPM | ≤ 5 | ||||||
Gas Content | % | ≤ 0.1 | ||||||
PLEASE CONTACT US FOR MORE INFORMATION !
