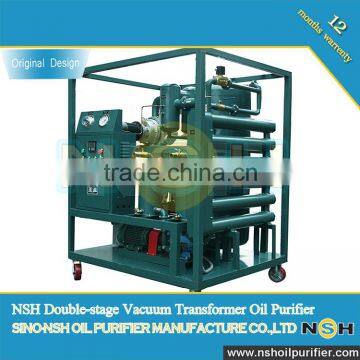

VFD-100 insulation oil purification machine
- 12 Set / Sets per Month
- Chongqing Shanghai
- T/T
You May Like
-
VFD series insulation oil Degasify purifier
-
Vacuum double-stage insulation oil filtration device
-
High Effective Vacuum Oil Purifier With Low Price
-
NSH RD Series Oil Regeneration Devicer With Good Quality
-
NSH Insulation Oil filter With Strong Purification
-
Waste Fuel Oil Purification, Filtration, Regeneration Machinery
Product Details
| Condition | New | Type | Other | |
| Structure | Vacuum | Place of Origin | Chongqing, China | |
| Brand Name | NSH | Model Number | VFD-100 | |
| Power(W) | 98Kw | Weight | 1100Kg | |
| Dimension(L*W*H) | 1900*1400*1800mm | Certification | ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Ⅰ.Application
NSH VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Ⅱ.Edges of VFD
* High efficiency and effectiveness.
* Enhance the value of breakdown voltage greatly.
* Easy handling and maintenance.
* Online work.
* Lower maintenance and replacement expenses.
* Small size, light weight, low noise
* Various sizes and configurations (shield) available.
Ⅲ.Technical Specification of VFD-100
Item | Unit | VFD-100 | |
Flow Rate | L/H | 6000 | |
Vacuum Range | MPa | -0.092~~-0.099 | |
Max Vacuum Range | Pa | ≤ 50 | |
Working Pressure | MPa | ≤ 0.2 | |
Temperature Range | °C | 45-65 | |
Water Content | PPm | ≤ 4 | |
Gas Content | % | ≤ 0.1 | |
Breakdown Voltage | Kv | 75 | |
Power Supply | V | ~50Hz/380V(or as needed) | |
Working Noise | dB | ≤ 72 | |
Heating Power | Kw | 90 | |
Total Power | Kw | 95 | |
Inlet(Outlet)Diameter | Mm | DN40 | |
Net Weight | Kg | 750 | |
Size | length | Mm | 1900 |
width | Mm | 1400 | |
height | Mm | 1800 | |
PLEASE CONTACT US FOR MORE INFORMATION !
==========================================================================
Sino-NSH Oil Purifier Manufacture Co., Ltd.——High Quality & Low Price
No.30-35, Jianxin North Road 16#, Jiangbei district, Chongqing, China
Tel: 0086 23 6772 5736
Fax: 0086 23 6772 5653
