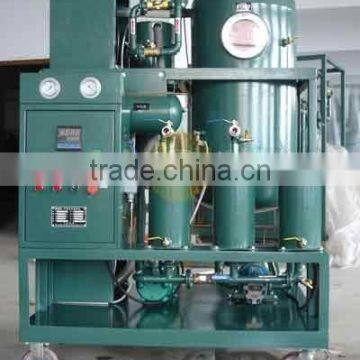

Turbine Oil Regeneration Purifier Plant
- Chongqing
- T/T
You May Like
Product Details
| Condition | New | Type | Press Filter | |
| Structure | Vacuum | Place of Origin | Chongqing, China | |
| Brand Name | SINO-NSH | Model Number | TF | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Turbine Oil Treatment Line,Oil Regeneration, Oil Purifier
TF series is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large amount of water and others such as vapor, impurities, sludge, dielectric and colloid.
TF series will result in the improvement of the properties of turbine oil or other lubrication and extend the maintenance period of turbines or other equipments which have lubrication system and keep them operate in good condition
Features:
To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
Enhance the value of breakdown voltage greatly.
Easy handling and maintenance.
Inject oil into the transformers
Online work
Lower maintenance and replacement expenses
High efficiency and effectiveness
Small size, light weight, low noise
Various sizes and configurations (shield) available.
- Technical Specification
Item | Unit | TF-10 | TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | |
Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
Vacuum Range | Mpa | -0.06 ~-0.096 | |||||||
Working Pressure | Mpa | ≤ 0.3 | |||||||
Clearness | NAS | ≤ 6 | |||||||
Temperature Range | ℃ | 40 ~ 80 | |||||||
Water Content | PPM | ≤ 100 | |||||||
Impurity Size | μ m | ≤ 5 | |||||||
Demulsification Number | Min | < 15 | |||||||
Power Supply | V | 380V/50Hz(or as needed) | |||||||
Working Noise | dB | ≤ 70 | ≤ 75 | ||||||
Heating Power | Kw | 9 | 18 | 27 | 36 | 72 | 90 | 120 | |
Total Power | Kw | 11 | 20 | 30 | 39 | 77 | 98 | 128 | |
Pipeline Diameter | mm | DN20 | DN20 | DN20 | DN25 | DN32 | DN40 | DN50 | |
Net Weight | Kg | 320 | 400 | 420 | 450 | 750 | 850 | 950 | |
Size | length | mm | 1280 | 1300 | 1300 | 1350 | 1500 | 1600 | 1700 |
width | mm | 750 | 900 | 950 | 1000 | 1000 | 1200 | 1400 | |
high | mm | 1450 | 1450 | 1500 | 1800 | 1950 | 2000 | 2050 | |
