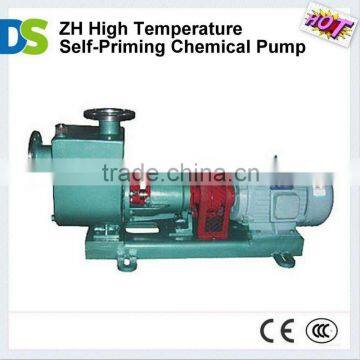

ZH Series Temperature Resistant and Corrode Resistant Self Priming Centrifugal Chemical Pump

Specifications

Features:

Property:ZH series temperature - resistant and corrode - resistant self - priming chemical centrifugal pump is researched and manufactured by our company which is a single - stage and single - suction self - priming chemical centrifugal pump, combined with similar products in domestic and overseas.

The performance scope for the pump:

flow: 1.6 ~ 400m3/h,

lift: 5 ~ 125m,

height of up - draft: less than 5m.
According to the various transferred mediums, the materials for the touching liquid part of ZH series self - priming chemical centrifugal pump can be selected to use cast steel, 304, 305, 316, 316L and others to manufacture.

Uses: This kind of pump can be used for the mediums of less than 35 % content of less than 3mm solid, with transferred temperature between 0 °C and 150 °C .

Model signification

ZH50 - 32 - 160A

Z —— Self - priming pump as symbol

H —— Chemical centrifugal pump as symbol

50 —— Pump suction inlet diameter ( mm )

32 —— Pump outlet diameter ( mm )

160 —— Nominal diameter for pump impeller ( mm )

A —— Sequence for cutting impeller diameter by A,B,C

Working performances table for ZH series temperature - resistant and corrode - resistant self - priming chemical centrifugal pump
