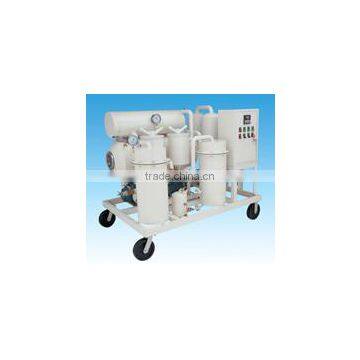

Trailer Used Insulation Oil Filtering
- chongqing
- T/T
You May Like
Product Details
| Condition | New | Flow | 1800~18000 | |
| Working Pressure | <0.2 | Place of Origin | Chongqing, China | |
| Brand Name | NSH | Model Number | VFD | |
| Usage | Insulation Oil | Voltage | 380V/50Hz | |
| Power(W) | 35~254 | Weight | 550~2200 | |
| Certification | ISO90001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
oil purifier, oil filter, oil recycling, oil purification, oil treatment , oil recovery, oil regeneration, oil filtering, oil processing, oil cleaner, oil reuse, oil refining,insulation oil purifier, oil regeneration, oil recycling, oil purification, oil treatment , oil recovery, oil processing, oil filtering, oil filtration, oil restoration, oil disposal, oil reclamation, oil purify
Transformer Oil Purification
1. To remove impurities
2.High efficiency and effectiveness
3. Easy handling and maintenance
VFD insulating oil recycling system is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
sinonsh123 at sino-purification dot com
Description
NSH VFD series utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | |
Vacuum Range | Mpa | _0.092 ~ -0.099 | |||||||
Working Pressure | Mpa | ≤ 0.3 | |||||||
Max Vacuum Range | Pa | ≤ 50 | |||||||
Temperature Range | centidegree | 45 ~80 | |||||||
Breakdown Voltage | kV | ≥ 75 | |||||||
Impurity Size | μ m | ≤ 5 | |||||||
Dielectric Loss | tgδ | ≤ 0.005 | |||||||
Interfacial Tension | mN/m | ≥ 40 | |||||||
Water Content | PPM | ≤ 5 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Power Supply | V | 380V/50Hz( or as needed) | |||||||
Working Noise | dB(A) | ≤ 72 | ≤ 78 | ||||||
Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 | |
Total Power | Kw | 33 | 52 | 77 | 96 | 128 | 188 | 252 | |
Pipeline Diameter | mm | DN20 | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 | |
Net Weight | Kg | 600 | 800 | 1000 | 1300 | 1800 | 2100 | 2400 | |
Size | length | mm | 1500 | 1600 | 1700 | 1900 | 2200 | 2300 | 2350 |
width | mm | 1100 | 1400 | 1500 | 1600 | 1700 | 1750 | 1850 | |
high | mm | 1750 | 1800 | 1850 | 1900 | 2100 | 2250 | 2250 | |
