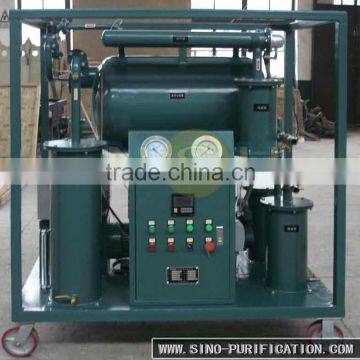

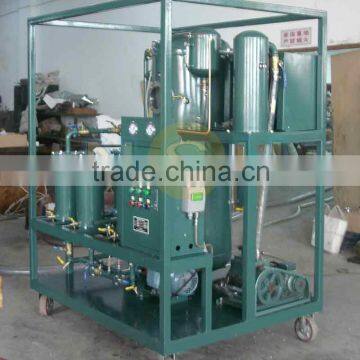

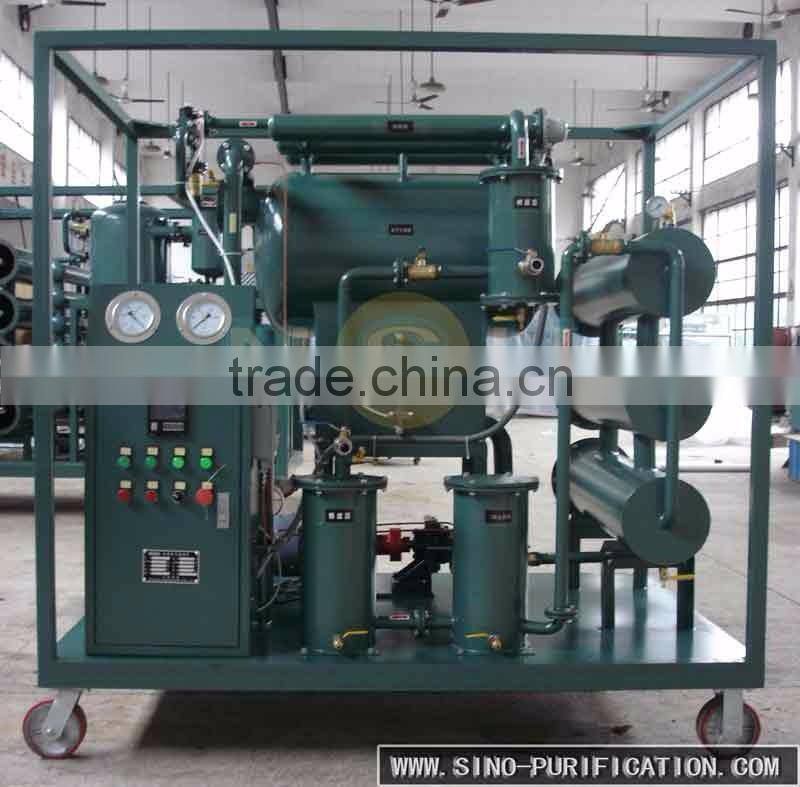

NSH Single-stage Used Transformer Oil Purification and Filtration Equipment
- Chongqing Guangzhou Shanghai
- T/T
You May Like
-
NSH VF Series Double Stage Vacuum Insulation Oil Filter Purifier Machine
-
NSH Single-stage Vacuum Oil Filtration Machine for Transformer Oil
-
NSH Waste Oil Purification Machine
-
Vacuum Used Transformer Oil Recycling, Oil Recycle Equipment
-
Vacuum Insulation Oil Purifer
-
Vacuum Insualtion Oil Regeneration Purifier
Product Details
| Place of Origin | Chongqing, China | Brand Name | NSH | |
| Model Number | VF-1800LPH | Type | Oil Purifier |
Product Description
Application
VF series vacuum insulation oil purifier is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers.
Equipped with regenerators, it can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 65KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.
Features
1. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
2. Enhance the value of breakdown voltage greatly.
3. Easy handling and maintenance.
4. Inject oil into the transformers
5. Online work
6. Lower maintenance and replacement expenses
7. High efficiency and effectiveness
8. Available in mobile or stationary options.
9. Small size, light weight, low noise
10. Various sizes and configurations (alloy shield) available.
Item | Unit | VF-10 | VF-20 | VF-30 | VF-50 | VF-100 | VF-150 | VF-200 | |
Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
Vacuum Range | Mpa | -0.065 ~ -0.096 | |||||||
Working Pressure | Mpa | ≤ 0.3 | |||||||
Max Vacuum Range | Pa | ≤ 100 | |||||||
Temperature Range | °C | 45 ~ 80 | |||||||
Breakdown Voltage | kV | ≥ 60 | |||||||
Impurity Size | μ m | ≤ 5 | |||||||
Water Content | PPM | ≤ 7 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Power Supply | V | 380V/50Hz(or as needed) | |||||||
Working Noise | dB | ≤ 70 | ≤ 75 | ||||||
Heating Power | Kw | 9 | 15 | 20 | 36 | 60 | 90 | 108 | |
Total Power | Kw | 11 | 17 | 23 | 40 | 64 | 95 | 113 | |
Pipeline Diameter | mm | DN25 | DN25 | DN25 | DN32 | DN40 | DN50 | DN50 | |
Net Weight | Kg | 300 | 320 | 350 | 400 | 500 | 800 | 1000 | |
Size | length | mm | 1050 | 1100 | 1200 | 1500 | 1700 | 1750 | 1800 |
width | mm | 750 | 800 | 900 | 1100 | 1200 | 1250 | 1400 | |
high | mm | 1350 | 1350 | 1400 | 1650 | 1850 | 1900 | 2000 | |
