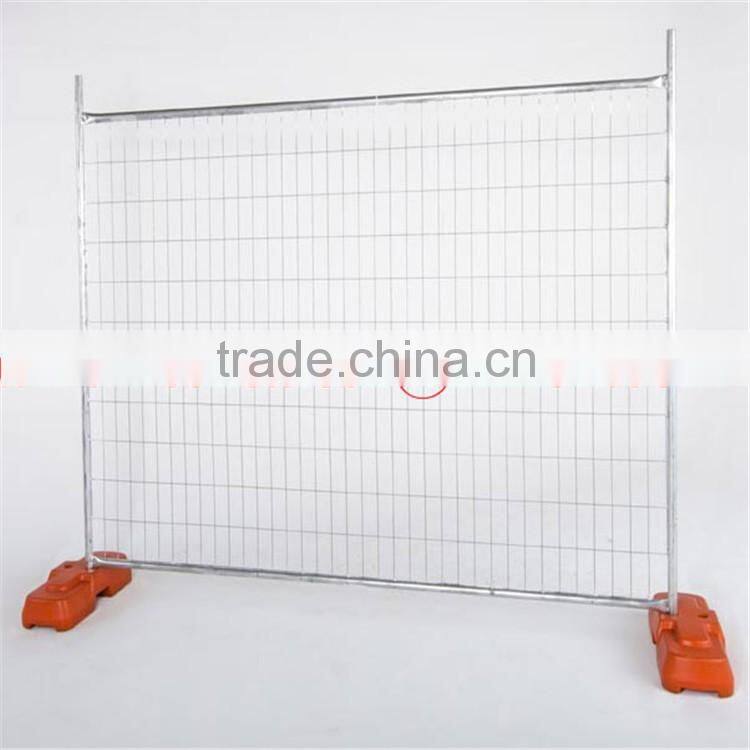

Welded Construction Temporary Fence for Australia Market

Welded Construction Temporary Fence for Australia Market

Hot Dipped Galvanized Temporary Wire Mesh Fence designed for long life and regular use. They incorporate an anti-climb weld mesh infill and are fully hot dipped galvanized to Australian Standards.

Hot Dipped Galvanized Temporary Wire Mesh Fence is for temporary isolation ,temporary partition,temporary enclosure ,flexibility is extremely strong products.

One Complete Set Temporary Wire Mesh Fence Include:Temporary Fence Panel ,Temporary Fence Clamps,Temporary Fence Plastic Feet,Temporary Fence Brace.

Material

Low Carbon Steel Wire+Hot Dipped Galvanized Pipe

Panel Specification

Wire Diameter : 2.50mm, 3mm, 3.5mm, 4mm, 4.5mm, 5.00mm,etc

Panel Size(HxL):2100x2400mm, 1800x2400mm, 1800x2500mm,etc
Infill Mesh Opening: 60x150mm,50x150mm,75x75mm,etc
Frame Pipe:25mm,32mm,40mm,42mm,48mm(1.5mm,2.0mm thickness),etc

Australia/New Zealand Standard Temporary Fence Specification

Different specifications are available according to your needs

Temporary Fence Clamps

The clamps are used to secure the panels together.Our temporary fence clamps consist of a central nut bolt, making securing two panels easy and fast.

Hot dipped galvanized temporary fence clamp zinc thickness 42microns which equal to 300gram/sqm total 4.00mm thickness enhance additional durable,strength.

Our clamp can used to secure the panels together fastly and easily the centre distance range from 75mm,80mm,90mm,100mm which suit one OD 25 OD 28 OD 32 OD 42 OD 50 pipe etc.

Temporary Fence Plastic Block/Base

Our Plastic/Concrete Fence Feet are a high quality, heavy duty, long life product. Your High quality steel temporary fence will look great and be safer with these high visibility colored feet. They are easier to see which makes them safer as they are less likely to be a tripping hazard for the public.

Temporary fence feet

Blow Molding feet

are aslo known as temporary fence block,fence base and plastic block, which are UV 5 Treatment,Anti Aging,Colour Fade ,Filled Concrete approx 30kg.
Common Dimensions:600mm x 220mm x 130mm
Hole Diameter: OD28mm, 25mm,32mm,42mm,48mm and more

Surface Treatment Of Temporary Fence

Electro galvanized, Hot dipped galvanized, PVC coated, galvanized after welded, powder coating after welded, paint spraying.

Temporary Fence Panels Hot Sale

Our flagship temporary fencing panels are designed to withstand the test of time and the harsh conditions experienced in many construction and resource sites.

1)Process

Wire Drawing → Welding →Tube Raw Material → Cutting → Welding panel and tube →Packing → Loading

2)Features

1>Anti -climb mesh infill
2>360° weld between the vertical & horizontal pipe
3>Horizontal pipe ends crimped for increased strength.
4>Above Industry Benchmark in thickness of galvanizing
5>Easy to install and to handle

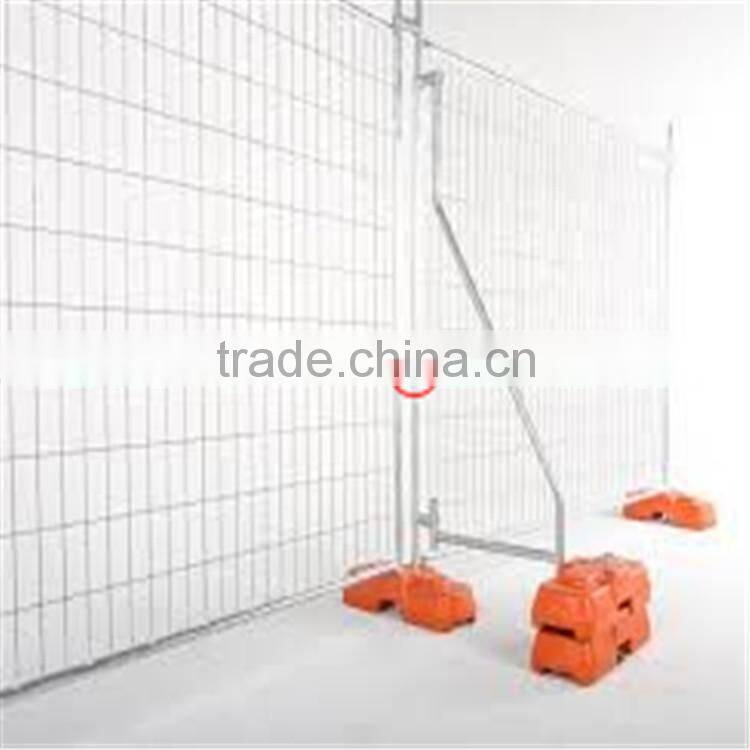

Temporary Fence Stay

Also called temporary fence brace or support used to support the temporary fence panel in high wind area finish by hot dipped galvanized 42 microns thickness,per stay required two fence clamp and three concrete feet the additional strength to secure fence panel stand well in high wind per 4.8meter or 7.2meter one stay live.

Temporary Fence Benefits

Quick and easy to install and can be easily re-located,beautiful and practical;

Easy for transport,simple installation in various land situations;

Protects your valuable assets and protects you against Public Liability claims;
Hinged gates can be attached to enable vehicular and machinery access;
Panel stabilisers used to ensure sturdy fences on long runs or wind prone areas;
The new bracing system further ensures the integrity of the fence system in areas prone to high winds;
Fence extensions are available on the Industrial/Event panel;
Several types of fence panel and base are available.
