PPM6107 PON Power Mete,1310/1490/1550nm,Equal To EXFO PPM350C
- shanghai
- T/T Credit Card
You May Like
-
PPM6107 Handheld PON Power Meter ,1310/1490/1550nm,Equal To EXFO PPM350C
-
PPM6107 PON Meter ,1310/1490/1550nm,Equal To EXFO PPM350C
-
PPM6107 Fiber Optic PON Power Meter ,1310/1490/1550nm,Equal To EXFO PPM350C
-
PPM6107 PON Optical Power Meter ,1310/1490/1550nm,Equal To EXFO PPM350C
-
PM6100 Optical Power Meter
-
PM6100 Mini Fiber Optic Power Meter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Sinomor | |
| Model Number | PPM6107 |
Product Description
Specifications
1. PON power meter,equal to EXFO PPM350C2. 1310nm up burst mode test
3. USB port for data storage and upload

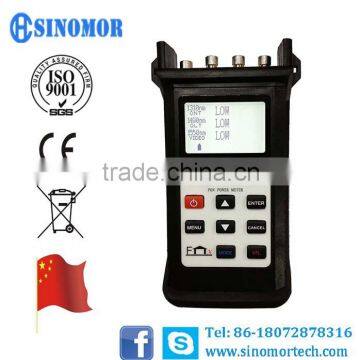

PPM6107 series PON Power Meter (equal to EXFO PPM350C) are designed for FTTX test and maintenance.
PPM6107 series PON Power Meter (equal to EXFO PPM350C) can simultaneously test voice, data and video signal, then make the judgment, pass, fail or warning as per the pre-set threshold.
There are total 10 groups of threshold setting via PC software and 1000 records storage for further edition.
To meet different test requirement, we develops 3 models PPM6107 PON power meter.
--PPM6107 FTTX PON power meter
It is basic version of PON power meter, which can only test the PON signal.
--PPM6107A FTTX PON power meter
It is PON plus normal power meter, which can test both of PON signal and normal signal.
--PPM6107B FTTX PON power meter
It is PM6107A plus VFL, which keeps PM6107A function and adds VFL function.
Features
PPM6107 series PON Power Meter (equal to EXFO PPM350C)
- Simultaneous measurement at all tri-wavelengths
- (1490nm, 1550nm & 1310nm )
- Burst mode measurement at 1310nm wavelength
- Green, Yellow or Red LED illuminator separately represents 3types of signal conditions Pass, Warn or Fail.
- Up to 1000 test records storage
- Data upload via USB cable
- 10 different threshold setting
- User self-calibrating function
- 10 minutes Auto-off function
- Time and date setting
- Added Factory Default function in software to enable all the customers’ setting revert to the original factory setting
Specification
Model | PPM6107 | ||
PON Module | |||
Wavelength | 1310 | 1490 | 1550 |
Pass Zone (nm) | 1260~1360 | 1470~1505 | 1535~1570 |
Isolation 1310nm(dB)
| / | >40 | >40
|
Isolation 1490nm(dB) | >40 | / | / |
Isolation 1550nm(dB) | >40 | >30 | / |
Measurement Range (dBm) | -40~+10 | -40~+10 | -40~+20
|
Detector | InGaAs | ||
Connector | Interchangeable FC/SC/ST | ||
Uncertainty (dB) | ±0.5 | ||
Linearity (dB) | ±0.1 | ||
Insertion Loss (dB) | <1.5 | ||
Resolution (dB) | 0.01 | ||
Measurement Unit | dB/dBm/xW | ||
Optional Optical Power Meter | |||
Calibration Wavelength (nm) | 850/1300/1310/1490/1550/1625 | ||
Detector | InGaAs | ||
Measurement Range (dBm) | -70~+6 or -50~+26 | ||
Uncertainty (dB) | ±0.25 | ||
Linearity (dB) | ±0.1 | ||
Resolution (dB) | 0.01 | ||
Connector | Interchangeable FC/SC/ST | ||
Optional Visual Fault Locator | |||
Wavelength (nm) | 650 | ||
Fiber | SM & MM | ||
Output Power (mw) | ≥1 | ||
Modulation (Hz) | CW & 2 | ||
General Information | |||
Battery | AA(3pcs) | ||
Working Hours (h) | 90 without backlight | ||
Operation Temperature (°C) | -10~+60 | ||
Storage temperature (°C) | -25~+70 | ||
Dimension (mm) | 180*90*36.5 | ||
Weight (kg) | 410g(excluding batteries) | ||
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
6) CD
Ordering Information
PPM6107 M-D-C-W
| |||
Measurement Range (M) | Detector (D) | Connector (C) | Wavelength (W) |
M1: PM6107 M2: PM6107A M3: PM6107B-T (-70~+6) M4: PM6107B-C (-50~+26) | D1: InGaAs D2: Si D3: Ge | C1:Interchangeable FC/SC/ST/PC C2:Interchangeable FC/SC/APC
| W1:850/1300/1310/1490/1550/1625nm W2: 850/980/1300/1310/1490/1550nm W3: others
|
1. Standard warranty is 18 months.
2. For extended warranty,it is also available with additional and reasonable cost.
3. Customized products are also available as per your specific request.
1. PON power meter+CD+USB cable+manual+battery+carrying pouch+carton box.
