MC-730 400x Handheld Optical Microscope for 1.25mm and 2.5mm Connector Inspection
- 100 Set / Sets per Month
- D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Sinomor | |
| Model Number | MC-730 | Theory | Other | |
| Drawtube | Monocular |
Product Description
Specifications
1. 400x Handheld Optical Microscope2. Smart size and light weight
3. Easy to use
4. 1.25mm and 2.5mm connector inspection
Overview
The MC-730 series 400x Handheld Optical Microscope is low cost, high quality microscope which are available in 200x or 400x magnification and utilize white LED light to provide coaxial illumination to connector end-faces.
This method of illumination produces high-resolution detail of end-face scratches, defects and contamination.

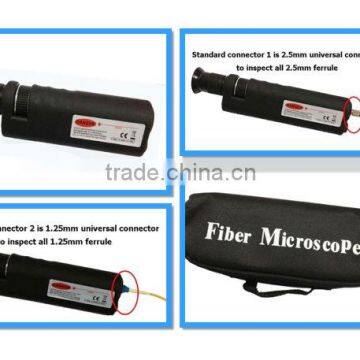

Three “AAA” batteries to provide more than 40 hours of use before battery replacement is required. Provided with a universal 2.5mm adapter including ST, FC and SC, the MC-730 series Handheld Optical Microscope can test both 2.5mm and 1.25mm connector.
Features
- 400x handheld optical microscope
- 200x or 400x Optical Microscope
- Smart size and light weight
- Easy to use
- Both 1.25mm and 2.5mm connector inspection
- Cost effective solution
Specification
Model | MC-730 |
Magnification | 200x or 400x |
Connector | 2.5mm universal/1.25mm universal |
Light Source | White LED |
Lighting | Coaxial |
Battery | AAA(3pcs) |
Working Time (h) | 40 |
Weight (g) | 520 |
Dimension (mm) | 230x78 |
Standard Accessory
1) Main unit
2) 2.5mm connector
3) 1.25mm connector
4) Carrying bag
